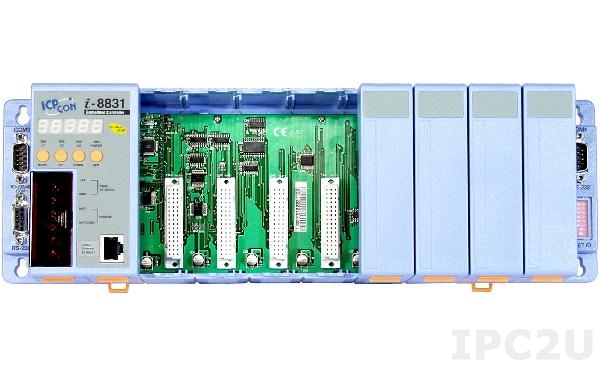

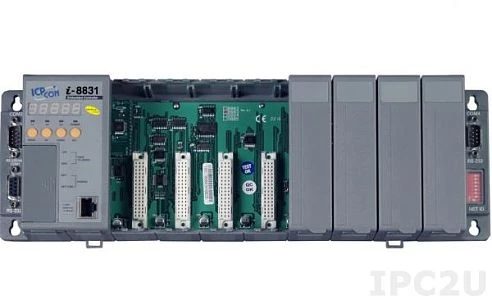

I-8831-MTCP
ICP DAS
SKU: 01950800
PC-compatible 40MHz Industrial Controller, 512kb Flash, 512kb SRAM, 2xRS232, 1xRS232/485, Ethernet 10BaseT, 7-Segment Display, Mini OS7, Modbus/TCP, 8 Expansion Slots
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Character
CPU
Processor Installed
80188
Max CPU frequency
0.04 GHz
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
2 kB
Expansion Module
Quantity of Slots
8
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Mini OS7
Programming Method
C/C++
Development Software
MiniOS7 Studio
Interfaces
COM Total
3
RS-232
2
RS-232/485
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU slave
Dimensions and weight
Width
354 mm
Depth
110 mm
Height
75.5 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1.4 kg
