HMI-043T-EM41B-O
ICOP
SKU: 56405200

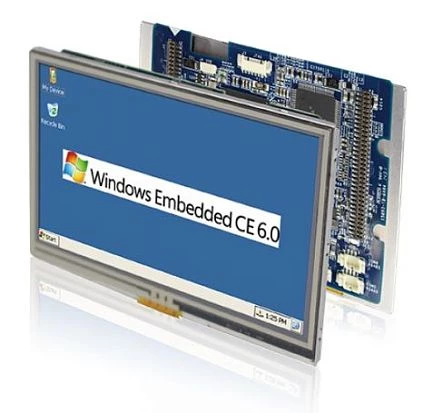

4.3" Fanless HMI open frame Panel PC, WQVGA 480x272, 350 cd/m2, Vortex86EXm 400MHz CPU, 128MB DDR3, 512MB NAND Flash, 1xLAN, 3xCOM, 1xCAN, 2xUSB 2.0, 8bit GPIO, Audio, 5V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Panel, Wall VESA 75
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
4.3 "
Maximum resolution
480x272 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Vortex86EX
Max CPU frequency
0.4 GHz
Memory
Form-factor
DDR3
Default on Board Memory
0.13 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Drive interfaces
CompactFlash Slots
1
MicroSD
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xOn/Off LED, Power LED
Controls
On/Off
Connectors
Connectors
PS/2 Keyboard/Mouse, RJ45
System Power Input
Input Voltage DC
5..5 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
MS DOS, Windows CE 5.0, Windows CE 6.0, Windows XP, Linux OS
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
2 kg
Gross Weight
2 kg
