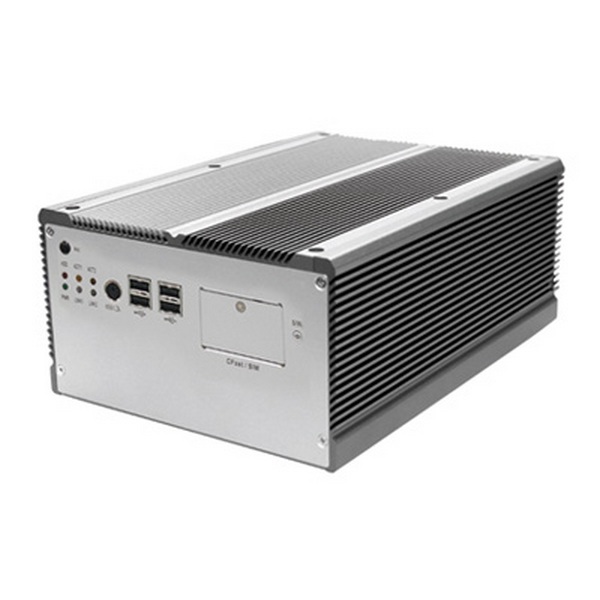

FPC-7512

Extreme Rugged Fanless Embedded Server, PGA988 for Intel Core i5/i7/Celeron, DDR3, DVI-I, DVI-D, 2xGbit LAN, 4xRS232, 8xUSB, Audio, CFAST Socket, 2.5" HDD Bay, 2x PCIe x8, 10-28V DC-In, Wallmount Kit

Price on request ()
Vendor:
Arbor
Construction Chassis:
Aluminium Chassis
Mounting Configuration:
Built-in, Desktop, Wall
Processor Supported:
Intel Celeron P4500, Intel Core i5-520M, Intel Core i7-620M
Type:
Fanless
Operating System Compatibility:
Windows XP Embedded, Windows Embedded Standard 7, Windows 7 Professional
Temperature:
-20 ... 55 °C
Specification
Vendor
Name:
Arbor
Construction
Construction Chassis:
Aluminium Chassis
Mounting Configuration:
Built-in, Desktop, Wall
CPU
Processor Supported:
Intel Celeron P4500, Intel Core i5-520M, Intel Core i7-620M (1st Generation)
Socket:
PGA988
Chipset
Chipset:
Intel QM57
Memory
Memory Type:
DDR3 800, DDR3 1066
Socket Type:
2xSODIMM 204pin
Assembly:
Removable
Maximum Memory:
8 GB
Graphic
Graphic Controller:
Integrated in CPU
Network Adapter
Total Ethernet:
2
10/100/1000 Mbit/s:
2
Interfaces
COM Total:
4
RS-232:
2
RS-232/485:
2
USB Total:
8
USB 2.0:
8
LPT:
LPT
Digital Input-Output
GPIO:
8xDigital In / 8xDigital Out
Audio
Audio Controller:
Intel HD Audio
Storage Controllers
SATA 2 Channels:
2
RAID SATA 2:
0, 1
Storage
CFast Socket:
Yes
Storage Cage
Number Of Cage External:
2
2.5" Cage External:
2
Extension Slots
Total:
3
PCI Express x8:
2
Mini-PCIe/Mini Card:
1
Additional Functions
Quantity of SIM Card:
1
Watchdog
Programmable:
Yes
Reaction Time:
1-255 sec
Cooling
Type:
Fanless
Connectors / Cables
Connectors:
DB44, 2xDVI-D, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, LPT, DC input (terminal block)
System Power Input
Input Voltage DC:
10 ... 28 V
Power Consumption:
50 W
Software
Operating System Compatibility:
Windows XP Embedded, Windows Embedded Standard 7, Windows 7 Professional
Dimensions and weight
Width:
195 mm
Height:
90 mm
Depth:
268 mm
Operating Conditions
Temperature:
-20 ... 55 °C
Humidity:
10 ... 95 % (non-condensing)
Vibration:
3 Grms/5~500Hz/random operation
Shock:
Operating 40G (11ms), Non-operating 60G with CFast/SSD
Standards and Certifications
Certifications:
CE, FCC Class A
Documentation

Dimensions

Weight

weight brutto: 5 kg
weight netto: 4.2 kg
