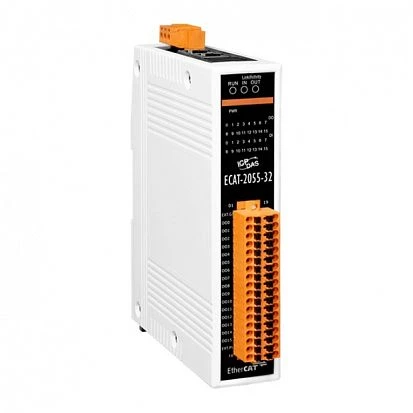

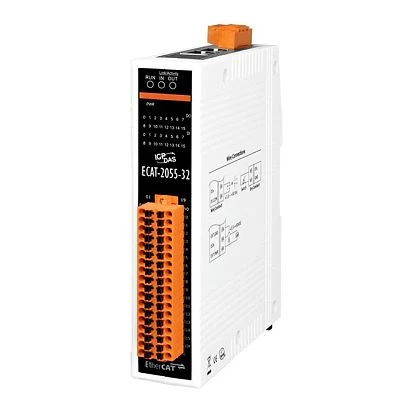

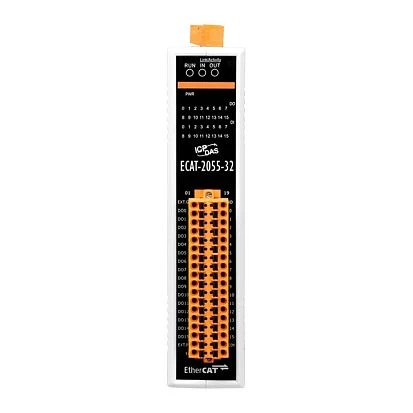

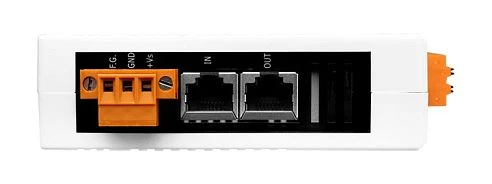

EtherCAT Slave I/O Module with Isolated 16-ch DO and 16-ch DI (RoHS)
ECAT-2055-32
ICP DAS
SKU: 07323200
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT slave
Digital Input
Total channels of digital input
16
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Isolation of Digital Input
3750 V
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
35~50 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
112.2 mm
Depth
31 mm
Height
140 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
