E93

E93

ACTi
SKU: 06711900

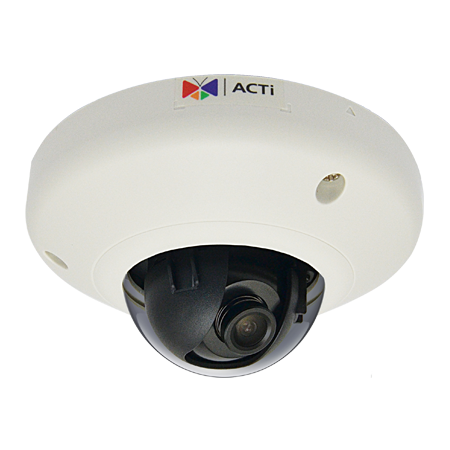

5MP Indoor Mini Dome with Basic WDR, Fixed lens, f1.9mm/F2.8, H.264, 1080p/30fps, DNR, MicroSDHC/MicroSDXC, PoE, IK08
380,02 €
Price excl. VAT and shipping cost
Available
Available

Camera
Form Factor
Dome
Maximum Resolution
5 MP
Video Analytics Functions
Motion Detection
Max Resolution Frame rate
15 fps
Supported Protocols
Managment Protocols
SMTP, HTTP, UDP, DNS, DHCP, SNMP, NTP, DDNS, IGMP, ARP, TCP, FTP, Bonjour, ICMP
Reservation protocols
RSTP
Security Protocols
HTTPS, IP Address Filtering, IEEE 802.1X Network Access Control, Password Protection
Connectors
Connectors
RJ45, MicroSD card slot
System Power Input
Power over Ethernet (PoE)
PoE
Power Consumption
2.91 W
Dimensions and weight
Height
58 mm
Operating Conditions
Operating Temperature
-10..50 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class B
EMS
EN 55024
Vandal Resistance
EN 62262, IK08 level
Dimensions
Gross Weight
1 kg
