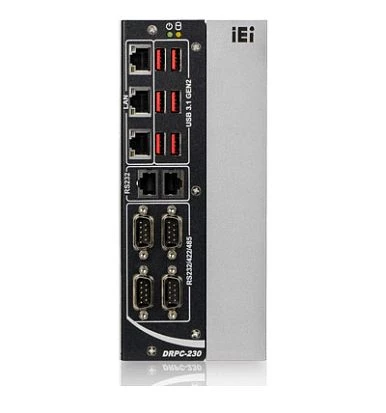

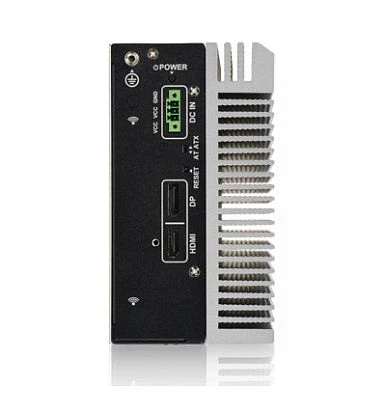

Embedded Server, Intel Whiskey Lake Celeron 4205U 1.8GHz, 8GB DDR4, HDMI, DP, 3xGbE LAN, 6xCOM, 6xUSB, DIO, 1x2.5" SATA Bay, M.2 2230, MinPCIe, 12-24VDC-in
DRPC-230-ULT5-C/8G/S
IEI
SKU: 09069200
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Type
Fanless
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Celeron 4205U
Socket
CPU onboard
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210, Intel i219
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232
2
RS-232/422/485
4
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Connectors
Connectors
HDMI, 3xRJ45 Ethernet, 6xUSB, Display Port, 4xDB9 Male, 2xRJ45 (COM)
System Power Input
Input Voltage DC
12..24 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
190 mm
Height
150 mm
Depth
81 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
MIL-STD-810G 514.6C-1 (SSD)
Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810F Test Method 514.5C-1 Vibration
Dimensions
Net Weight
2.9 kg
Gross Weight
3.2 kg
