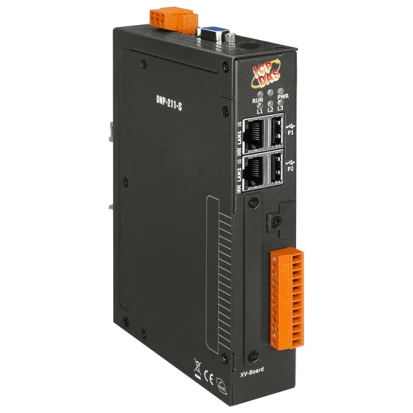

DNP-211-S
ICP DAS
SKU: 11664700
DNP3 Slave to Modbus TCP Client Gateway, Cortex-A8 1GHz, 512MB DDR3 SDRAM, VGA, 2xGbE LAN, 2xRS-232, 2xRS-485, 2xUSB 2.0, 12-48VDC-in
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
2
Supported Protocols
Industrial Protocols
Modbus TCP client, DNP3 serial slave, DNP3 ethernet server
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
35 mm
Depth
119 mm
Height
167 mm
Dimensions
Net Weight
0.26 kg
Gross Weight
0.31 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
2
Supported Protocols
Industrial Protocols
Modbus TCP client, DNP3 serial slave, DNP3 ethernet server
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
35 mm
Depth
119 mm
Height
167 mm
Dimensions
Net Weight
0.26 kg
Gross Weight
0.31 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
2
Supported Protocols
Industrial Protocols
Modbus TCP client, DNP3 serial slave, DNP3 ethernet server
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
35 mm
Depth
119 mm
Height
167 mm
Dimensions
Net Weight
0.26 kg
Gross Weight
0.31 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
2
Supported Protocols
Industrial Protocols
Modbus TCP client, DNP3 serial slave, DNP3 ethernet server
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
35 mm
Depth
119 mm
Height
167 mm
Dimensions
Net Weight
0.26 kg
Gross Weight
0.31 kg
