DN-8368MB

DN-8368MB

ICP DAS
SKU: 05752400

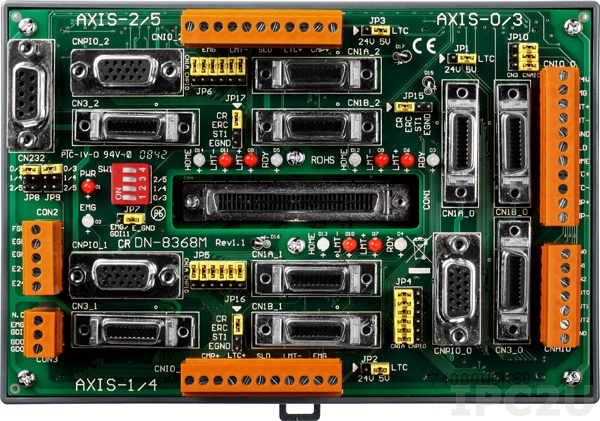

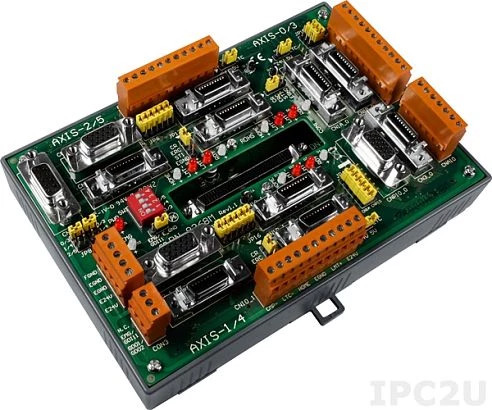

Photo-isolated terminal board for ICPDAS 3-axis stepper/servo controller for Mitsubishi servo J2 Amplifier, 0.5 A /24 VDC
Price on request
Available
Available

Dimensions and weight
Width
162 mm
Height
107 mm
Operating Conditions
Operating Temperature
-20..75 °C
Humidity
10-90%
Dimensions
Gross Weight
0.5 kg

Documentation
Datasheet DN-8368MB User Manual DN-8368MB

Get a Quote
