DESSV-08GD07SCADBF

DESSV-08GD07SCADBF

InnoDisk
SKU: 55920700

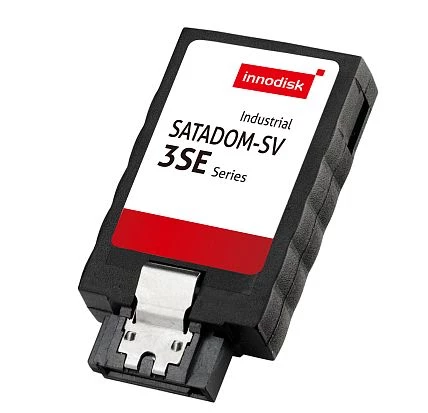

8GB Innodisk SATADOM-SV 3SE, SATA 3, VCC on Pin7, SLC, Vertikal Mount DiskOnModule, R/W 250 / 60 MB/s, Standard Temperature 0..+70 C
Price on request
Available
Available

Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
8 GB
Transfer Rate Maximum Read
250 MB/s
Transfer Rate Maximum Write
60 MB/s
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G@7~2000Hz
Shock
1500G@0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
8 GB
Transfer Rate Maximum Read
250 MB/s
Transfer Rate Maximum Write
60 MB/s
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G@7~2000Hz
Shock
1500G@0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
8 GB
Transfer Rate Maximum Read
250 MB/s
Transfer Rate Maximum Write
60 MB/s
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G@7~2000Hz
Shock
1500G@0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
8 GB
Transfer Rate Maximum Read
250 MB/s
Transfer Rate Maximum Write
60 MB/s
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G@7~2000Hz
Shock
1500G@0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg

Documentation
Innodisk_SATADOM-SV_3SE_Datasheet___0222555.pdf
Documentation
Innodisk_SATADOM-SV_3SE_Datasheet___0222555.pdf
Documentation
Innodisk_SATADOM-SV_3SE_Datasheet___0222555.pdf
Documentation
Innodisk_SATADOM-SV_3SE_Datasheet___0222555.pdf

Get a Quote
