DESSL-64GD09BCADC

DESSL-64GD09BCADC

InnoDisk
SKU: 09782100

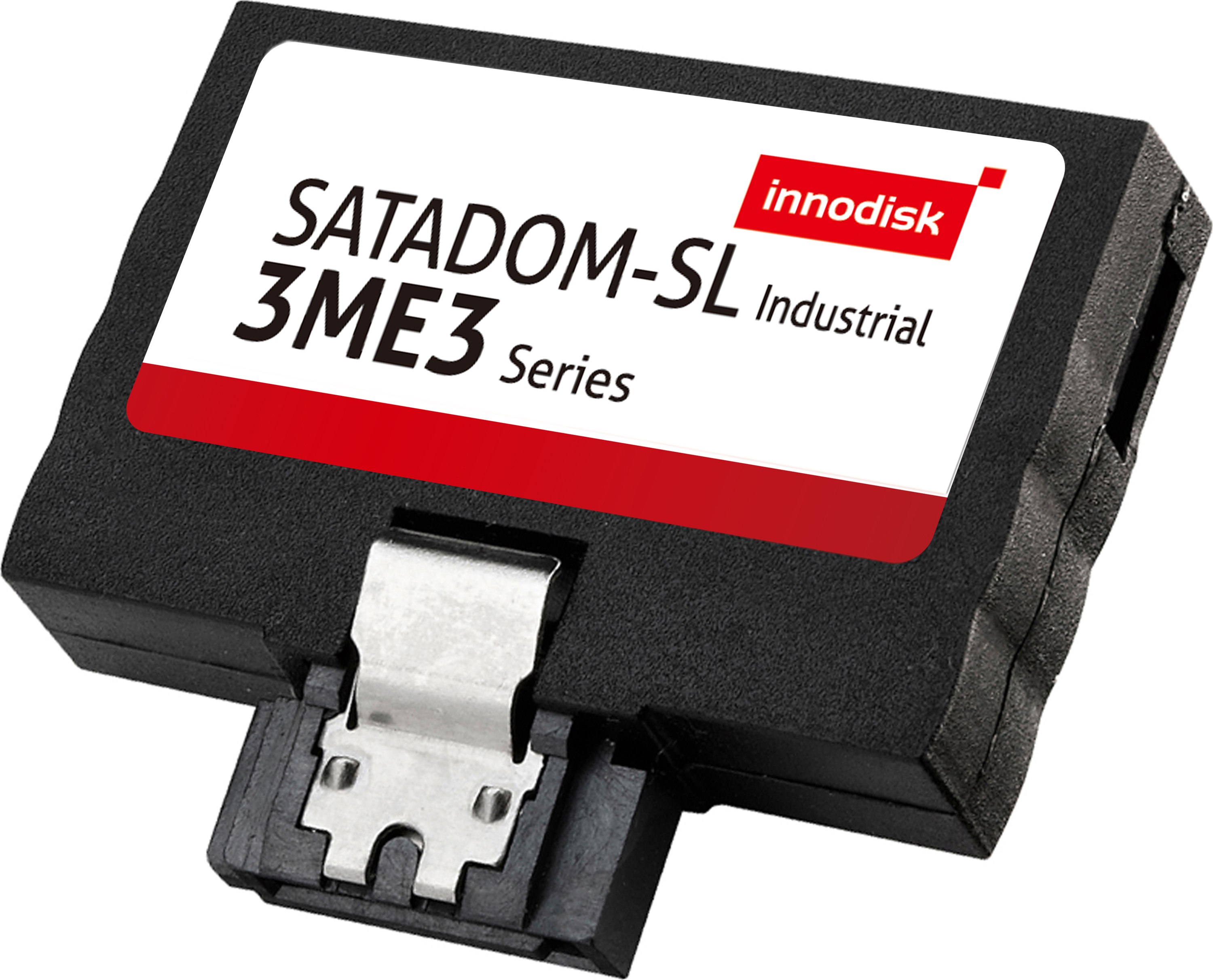

64GB Innodisk SATA III SATADOM-SL 3ME3, MLC, 2 channels, R/W 210/75 MB/s, 0C..+70C
Price on request
Available
Available

Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
MLC
Capacity
64 GB
Transfer Rate Maximum Read
220 MB/s
Transfer Rate Maximum Write
75 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
370 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000H
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
MLC
Capacity
64 GB
Transfer Rate Maximum Read
220 MB/s
Transfer Rate Maximum Write
75 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
370 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000H
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
MLC
Capacity
64 GB
Transfer Rate Maximum Read
220 MB/s
Transfer Rate Maximum Write
75 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
370 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000H
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
MLC
Capacity
64 GB
Transfer Rate Maximum Read
220 MB/s
Transfer Rate Maximum Write
75 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
370 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000H
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg

Documentation
Innodisk_SATADOM-SL_3ME3_Datasheet.pdf
Documentation
Innodisk_SATADOM-SL_3ME3_Datasheet.pdf
Documentation
Innodisk_SATADOM-SL_3ME3_Datasheet.pdf
Documentation
Innodisk_SATADOM-SL_3ME3_Datasheet.pdf
