DESSL-04GD09SCADBB

DESSL-04GD09SCADBB

InnoDisk
SKU: 09858000

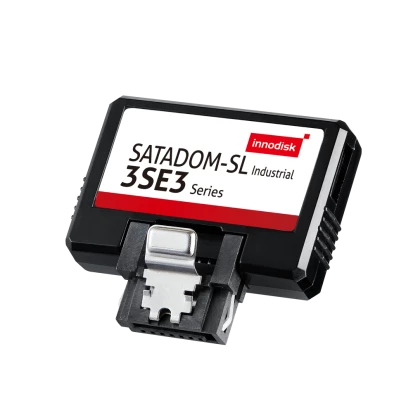

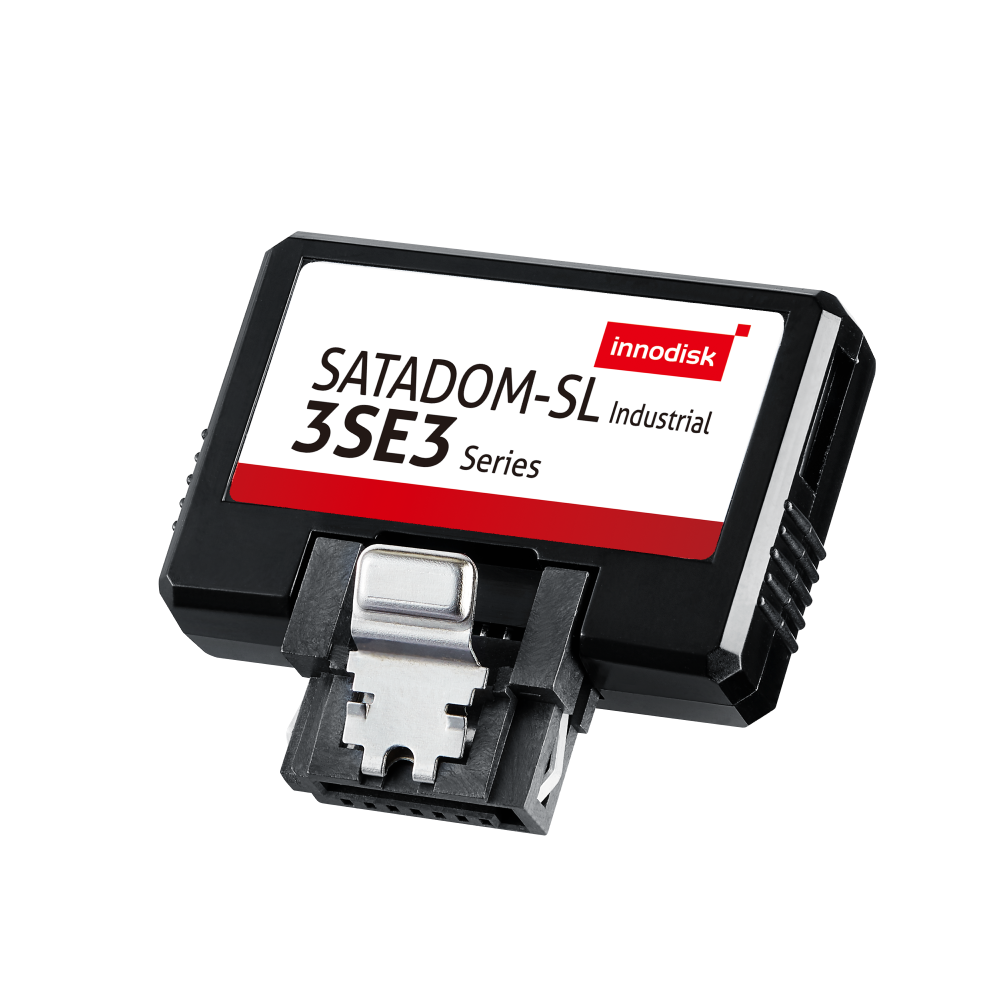

4GB Innodisk SATA III SATADOM-SL 3SE3 SLC, 2 channels, R/W 180/55 MB/s, 0C..70C
Price on request
Available
Available

Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA, 8-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
4 GB
Transfer Rate Maximum Read
180 MB/s
Transfer Rate Maximum Write
55 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
150 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA, 8-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
4 GB
Transfer Rate Maximum Read
180 MB/s
Transfer Rate Maximum Write
55 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
150 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA, 8-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
4 GB
Transfer Rate Maximum Read
180 MB/s
Transfer Rate Maximum Write
55 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
150 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA, 8-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
4 GB
Transfer Rate Maximum Read
180 MB/s
Transfer Rate Maximum Write
55 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
150 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg

Documentation
Innodisk_SATADOM-SL_3SE3_Datasheet.pdf
Documentation
Innodisk_SATADOM-SL_3SE3_Datasheet.pdf
Documentation
Innodisk_SATADOM-SL_3SE3_Datasheet.pdf
Documentation
Innodisk_SATADOM-SL_3SE3_Datasheet.pdf

Get a Quote
