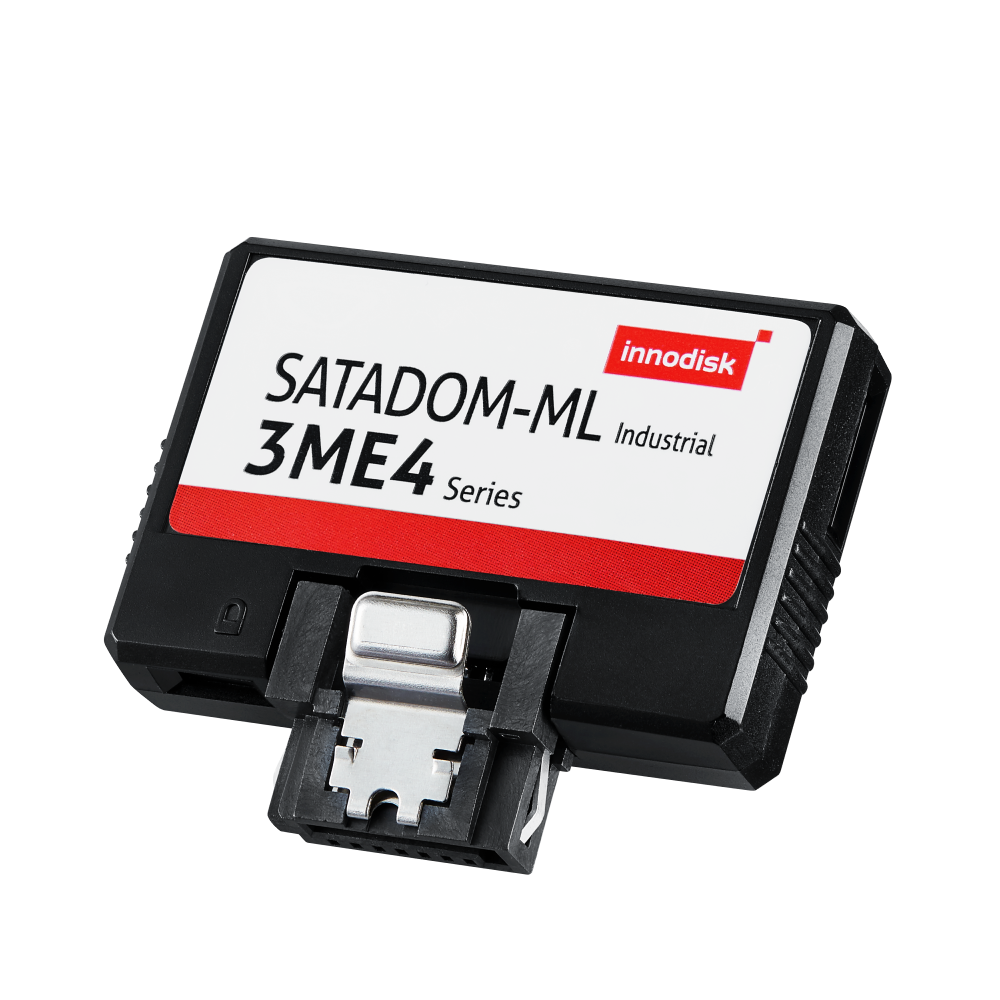

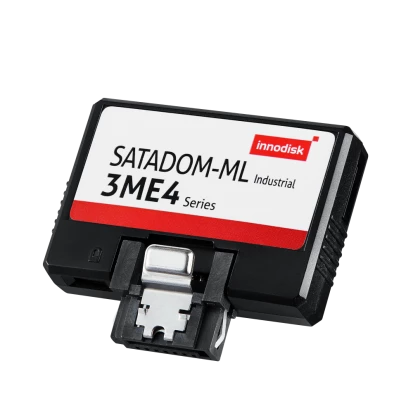

DESML-A28M41BWADCB

DESML-A28M41BWADCB

InnoDisk
SKU: 57152300
128GB Innodisk SATA III SATADOM-ML 3ME4 with Pin7 VCC, MLC, 2 channels, R/W 530/180 MB/s, W&T Grade, -40 ~ 85 C
Price on request
Available
Available

Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA, 8-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
3D TLC
Capacity
128 GB
Transfer Rate Maximum Read
530 MB/s
Transfer Rate Maximum Write
180 MB/s
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
5-95%
Vibration
20G@7~2000Hz
Shock
1500G@0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
