DESML-64GD08BC1DCF

DESML-64GD08BC1DCF

InnoDisk
SKU: 56308500

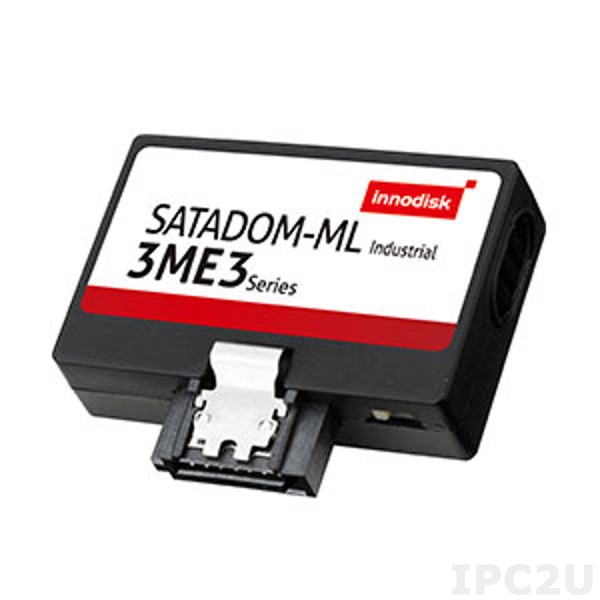

64GB SATADOM-ML 3ME3 with Pin7 VCC Supported,Temperature 0..+70 C
Price on request
Available
Available

Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Positioning
Vertical
Interface
SATA 3
Type flash memory
MLC
Capacity
64 GB
Transfer Rate Maximum Read
200 MB/s
Transfer Rate Maximum Write
40 MB/s
System Power Input
Input Voltage DC
5..5 V
Operating Conditions
Operating Temperature
0..70 °C
Vibration
7 Hz to 2K Hz, 20G
Shock
Duration: 0.5ms, 1500 G
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
