DES25-64GD82SWAQB

DES25-64GD82SWAQB

InnoDisk
SKU: 08545000

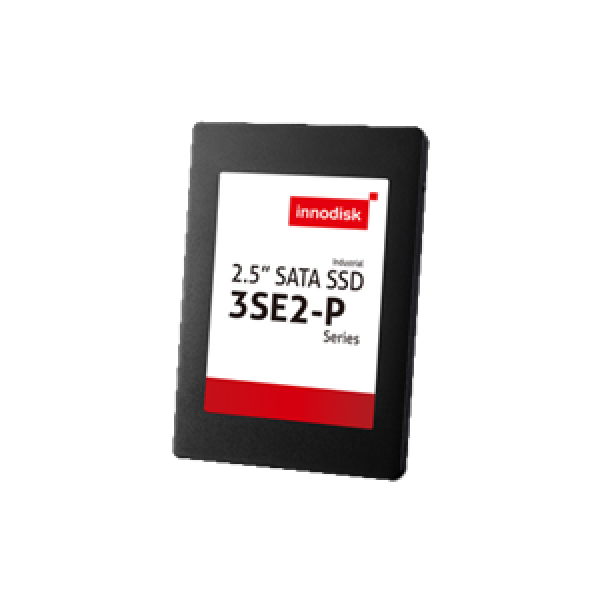

Innodisk 64GB SATA III 2.5" SSD, 3SE-2P AES, High IOPS, SLC, 4 channels, 520/330 MB/s R/W Industrial SDD, iSMART, Temperature Grade -40...+85C
Price on request
Available
Available

Flash Disk
Type
SSD 2.5"
Connector / Socket
15+7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
64 GB
Transfer Rate Maximum Read
520 MB/s
Transfer Rate Maximum Write
330 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
428 mA
Operating Conditions
Operating Temperature
-40..85 °C
Vibration
7 Hz to 2K Hz, 20G, 3 axes
Shock
Duration: 0.5ms, 1500 G, 3 axes (IEC 68-2-27)
Dimensions
Net Weight
0.04 kg
Gross Weight
0.05 kg
Flash Disk
Type
SSD 2.5"
Connector / Socket
15+7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
64 GB
Transfer Rate Maximum Read
520 MB/s
Transfer Rate Maximum Write
330 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
428 mA
Operating Conditions
Operating Temperature
-40..85 °C
Vibration
7 Hz to 2K Hz, 20G, 3 axes
Shock
Duration: 0.5ms, 1500 G, 3 axes (IEC 68-2-27)
Dimensions
Net Weight
0.04 kg
Gross Weight
0.05 kg
Flash Disk
Type
SSD 2.5"
Connector / Socket
15+7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
64 GB
Transfer Rate Maximum Read
520 MB/s
Transfer Rate Maximum Write
330 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
428 mA
Operating Conditions
Operating Temperature
-40..85 °C
Vibration
7 Hz to 2K Hz, 20G, 3 axes
Shock
Duration: 0.5ms, 1500 G, 3 axes (IEC 68-2-27)
Dimensions
Net Weight
0.04 kg
Gross Weight
0.05 kg
Flash Disk
Type
SSD 2.5"
Connector / Socket
15+7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
64 GB
Transfer Rate Maximum Read
520 MB/s
Transfer Rate Maximum Write
330 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
428 mA
Operating Conditions
Operating Temperature
-40..85 °C
Vibration
7 Hz to 2K Hz, 20G, 3 axes
Shock
Duration: 0.5ms, 1500 G, 3 axes (IEC 68-2-27)
Dimensions
Net Weight
0.04 kg
Gross Weight
0.05 kg

Documentation
Datasheet Innodisk_2.5_SATA_SSD_3SE2-P
Documentation
Datasheet Innodisk_2.5_SATA_SSD_3SE2-P
Documentation
Datasheet Innodisk_2.5_SATA_SSD_3SE2-P
Documentation
Datasheet Innodisk_2.5_SATA_SSD_3SE2-P
