DEM28-01TM61ECAQF

InnoDisk
SKU: 08910400

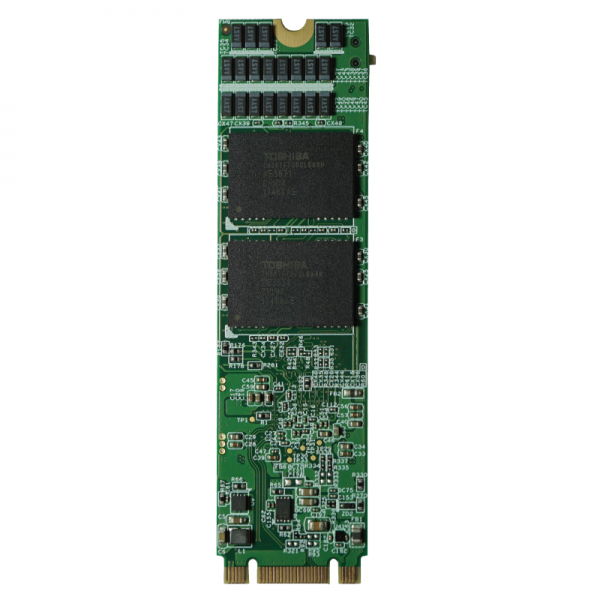

1TB Innodisk 3TE2, PCIe Gen3x2, M.2 (P80) Interface, 3D TLC, read/write 1250/600 Mb/s, Standard Temperature 0...+70C
Price on request
Available
Available

Flash Disk
Type
M.2 2280
Connector / Socket
Key M
Construction
Open Frame
Interface
PCIe Gen3x2
Type flash memory
3D TLC
Capacity
1024 GB
Transfer Rate Maximum Read
1250 MB/s
Transfer Rate Maximum Write
600 MB/s
System Power Input
Input Voltage DC
3..3 V
Current
614 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G, 7-2000Hz
Shock
1500G, 0.5 ms
MTBF
3000000 h
Dimensions
Net Weight
0.02 kg
Gross Weight
0.02 kg
