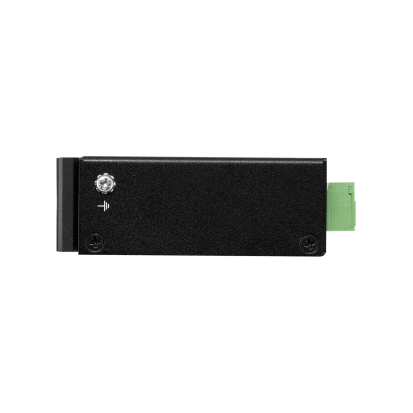

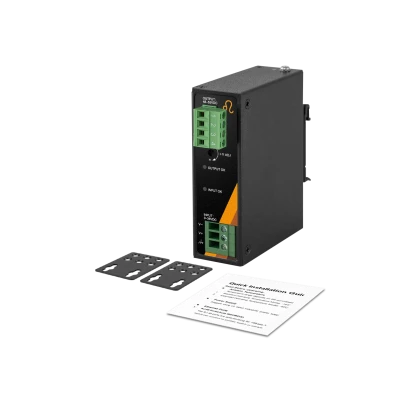

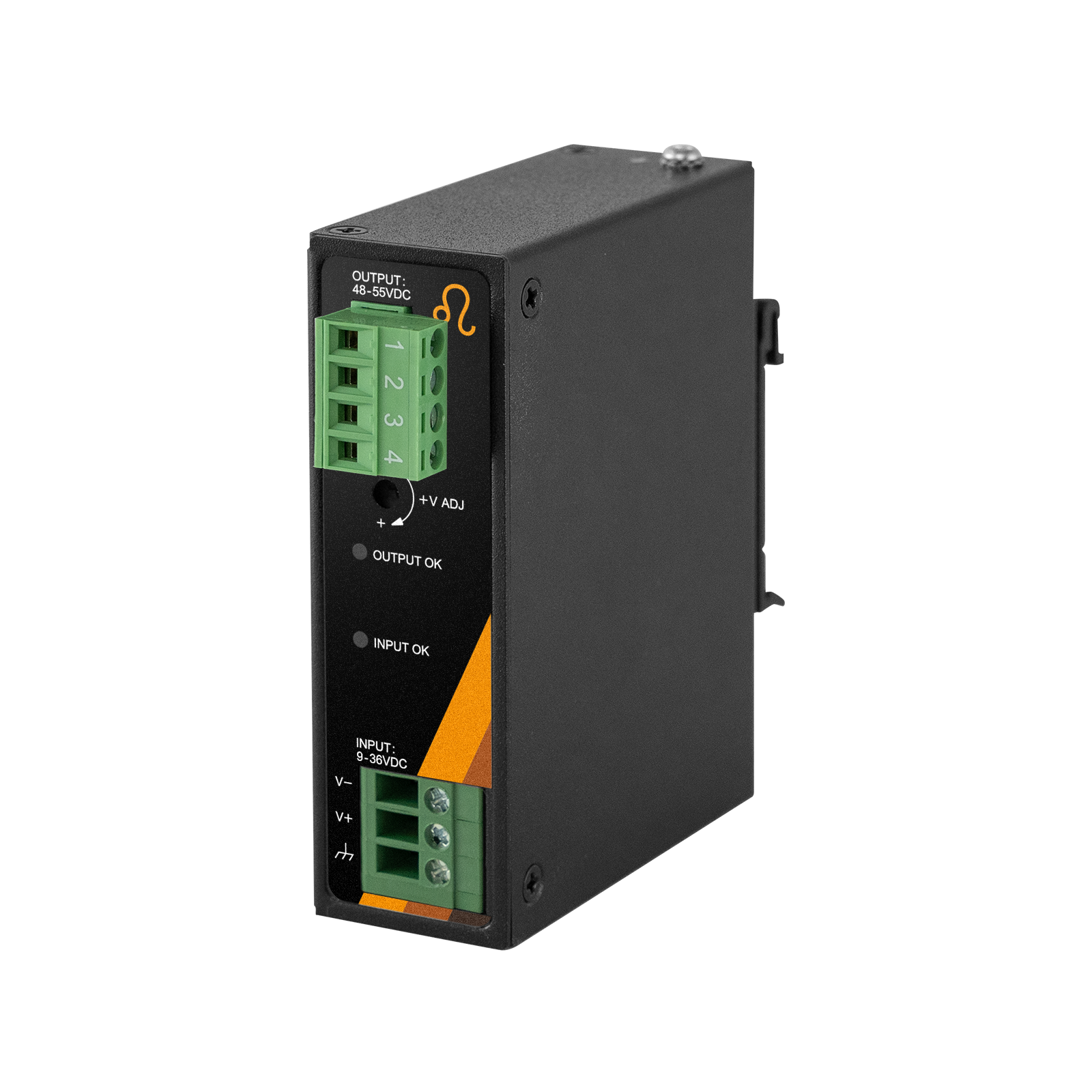

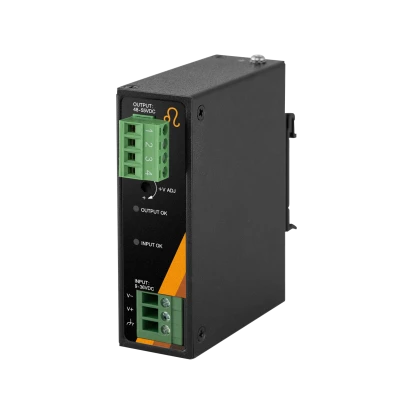

DD-0953-360
Leonton
SKU: 80027600
Industrial DC to DC Power Booster, Input 9..36VDC (up to 55), Output 48..55VDC, Max. Power Budget 360W, Operating Temperature -40..75 C
Price on request
Available on order
Available on order
Power Supply
Output Power
360 W
Output Voltage DC
48 V
Rated current
12.8 A
Construction
Mounting Configuration

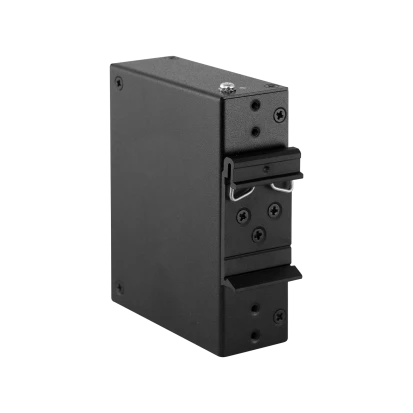

DIN-Rail mount, Wall
Dimensions and weight
Width
30 mm
Depth
95 mm
Height
75 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
Power Supply
Output Power
360 W
Output Voltage DC
48 V
Rated current
12.8 A
Construction
