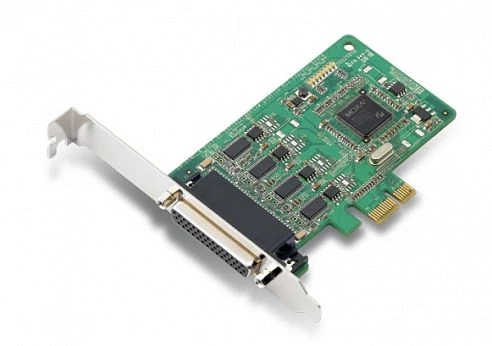

CP-114EL-I-DB9M
MOXA
SKU: 05176400
4xRS-232/422/485 Low-Profile PCIe Board, PCIe Bus, 15KV ESD with DB9M Cable, with 2KV isolation
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Interfaces
COM Total
4
Isolation of COM Ports
2 kV (RS-232/422/485)
RS-232/422/485
4
Connectors
Connectors
DB44
Cables
Cable Connector Type
DB9 male
Included Cables
CBL-M44M9x4-50
Software
Operating System Compatibility
MS DOS, Linux kernel 2.6, Windows Server 2003, Windows Server 2008, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Windows 8.1, UnixWare 7, QNX 6, Solaris 10, FreeBSD
Dimensions and weight
Width
67.2 mm
Depth
135 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022, FCC Part 15, EN 61000-3-2, EN 61000-3-3
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Dimensions
Net Weight
0.35 kg
Gross Weight
0.5 kg
