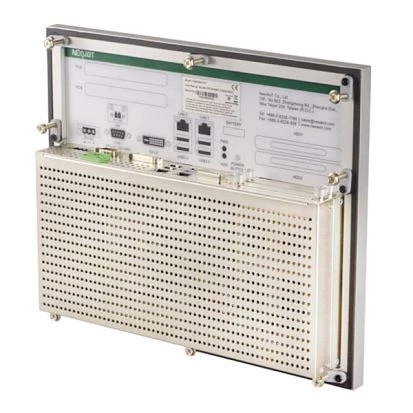

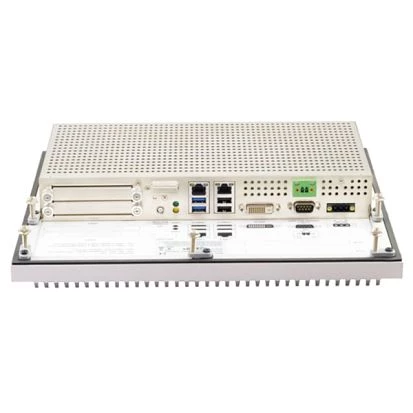

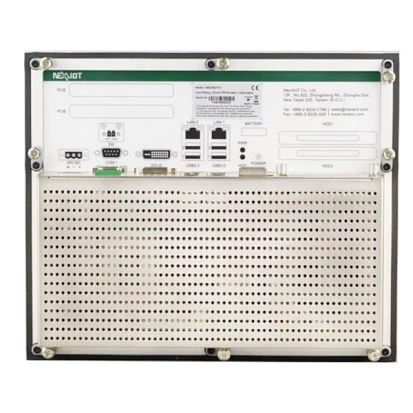

Cabinet Mount Fanless PC, Intel Core i5-9500TE CPU, up to 64GB DDR4 RAM, 1xDVI-D, 2xGbE LAN, 1xRS232/422/485, 2xUSB 2.0, 2xUSB 3.0, 2x2,5" SSD Bays, 1xmini-PCIe, IP65, 18..24V DC, 0..60C operating temp.
CMC-300-F03
NEXCOM
SKU: 57321600
Price on request
Available on order
Available on order
Construction
Construction Chassis

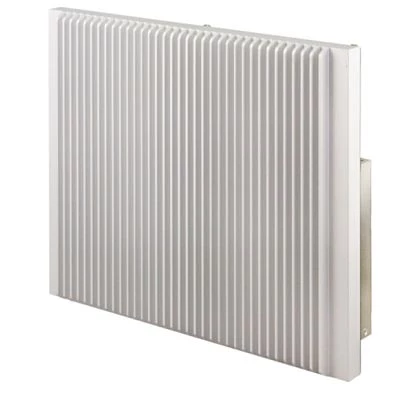

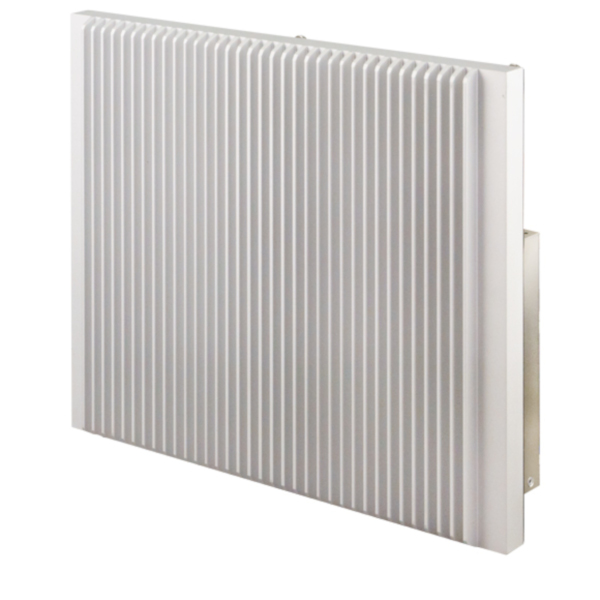

Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Panel
Protection Level of Chassis
IP65
Type
Fanless
CPU
Processor Installed
Intel Core i5-9500TE
CPU Support Type
Core i3, Core i5, Core i7, Xeon
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel C246
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
DVI-D, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block), DB9 Male, 2xUSB (4-pin)
System Power Input
Input Voltage DC
18..24 V
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
330 mm
Height
275 mm
Depth
62.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64; Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-64
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
5.7 kg
Gross Weight
7 kg
