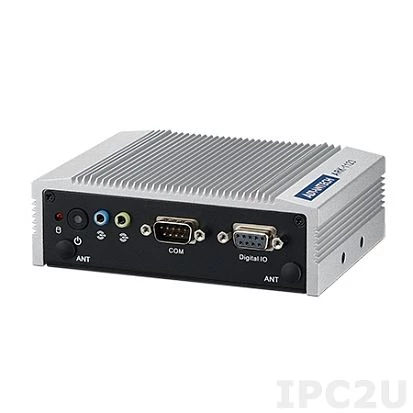

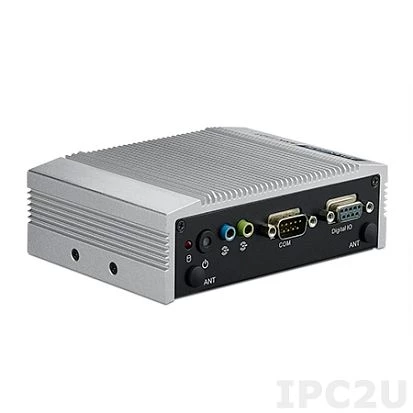

ARK-1123L-S3A1E
Advantech
SKU: 06804300
Fanless Embedded Server with Intel Atom E3825 1.33GHz, up to 8Gb DDR3L, 1xVGA, 1xGbE, 2xCOM, 2xUSB, 1 x Full-Size MiniPCIe, 1 x Half Size MiniPCIe
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall, Wall VESA 75
Protection Level of Chassis
IP40
Type
Fanless
CPU
Processor Installed
Intel Atom E3825
Max CPU frequency
1.33 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210 10/100/1000 Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Audio
Audio Controller
Realtek ALC888
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DB15 VGA, RJ45, 2xUSB, Mic In, Line Out, DC Input, DB9 DIO
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux OS
Dimensions and weight
Width
133.8 mm
Height
43.1 mm
Depth
94.2 mm
Operating Conditions
Operating Temperature
-30..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, CB, UL, BSMI
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
3 kg
