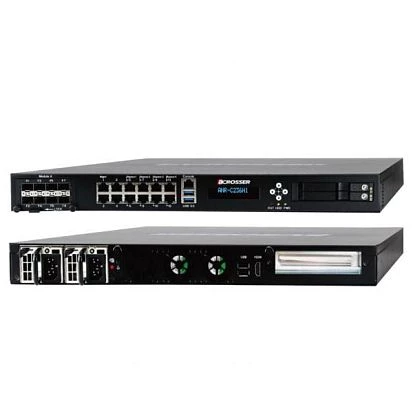

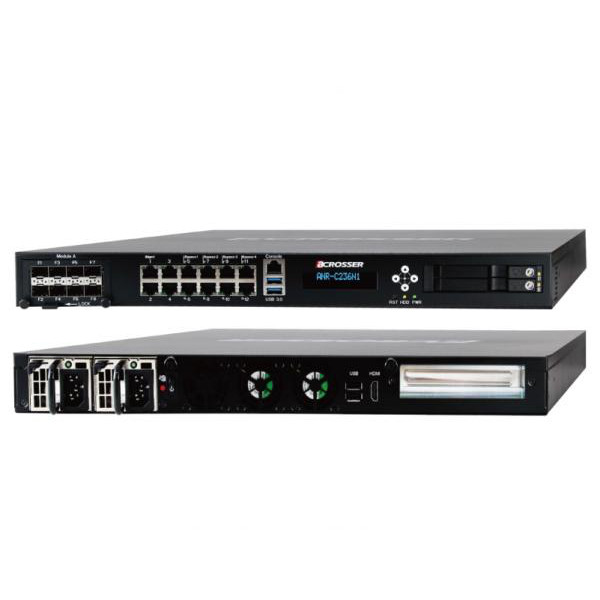

ANR-C236N1-K2D00-i7

ANR-C236N1-K2D00-i7 Intel Core i7 Rackmount Server with up to 64GB of DDR4 RAM, RAID 0/1, 2x2.5'' SSD/HDD, 12xGbE LAN, 4xUSB, PCIe With the Intel Core i7 processors of the 7th century, which were released in the first quarter of 2017, generation Kaby Lake, the 1U rackmount server ANR-C236N1-K2D00-i7 achieves a high computing and graphics performance. A fast DDR4 RAM with or without ECC error correction and two memory media with SATA 3.0 and optional hardware RAID allow fast data transfer at complex calculations. By combining the latest genres of hardware like an Intel Core i7-7700T quad core with 2.90 GHz as base clock and 3.80 GHz in turbo boost mode and a DDR4 RAM with a capacity of up to 64 GB on four banks, the ANR-C236N1-K2D00-i7 achieves a very high performance. The storage of the user data and the operating system is carried out on two 2.5'' SATA HDD/SSD, which can be used as individual drives or as a RAID 0/1 network. As alternative drives, the High Performance Server also supports modules for mSATA and CFast, for which it is used a pedestal. Expansion slots are a slot for expansion in PCI Express and another in OPMA, which can be used, for example, for IPMI 2.0. The ANR-C236N1-K2D00-i7 is for its job as a network security server and a multiple broadband connection with simple and multiple redundancy or other structures such as ring networks twelve Ethernet ports. Every single connection with RJ45 LAN copper cables is included a bandwidth of 10/100/1000 Mbit/s. The chassis has a comfortable cable guide a height of 1U both front and rear each have two USB ports, the front fast standard USB 3.0 and the rear 2.0 support. Access to the remote administration or configuration is possible when operating as a headless server over the network or through an RJ45 console port. At a low height of 1U, the ANR-C236N1-K2D00-i7 provides excellent computing performance with excellent energy efficiency and high operating safety. Electricity supply is redundant over two separate power supplies with a single - cell power of up to 300 watts data integrity is ensured by a mirrored RAID 1, if necessary. To the application, areas of the 1U rack server ANR-C236N1-K2D00-i7 therefore belong to data centers and computational environments with high failure protection, such as electricity and water supply, telecommunications or traffic control. Product variants and order code CPU 10G Fiber PSU ANR-C236N1-K2D0T-E3 Intel Xeon E3-1275 v6 2x Redundant PSU ANR-C236N1-K2D0T-i7 Intel Kabylake Core i7-7700 2x Redundant PSU ANR-C236N1-K2D0T-i5 Intel Kabylake Core i5-7500 2x Redundant PSU ANR-C236N1-K2D0T-i3 Intel Kabylake Core i3-7101E 2x Redundant PSU ANR-C236N1-K2D00-E3 Intel Xeon E3-1275 v6 0x Redundant PSU ANR-C236N1-K2D00-i7 Intel Kabylake Core i7-7700 0x Redundant PSU ANR-C236N1-K2D00-i5 Intel Kabylake Core i5-7500 0x Redundant PSU ANR-C236N1-K2D00-i3 Intel Kabylake Core i3-7101E 0x Redundant PSU ANR-C236N1-K1D00-E3 Intel Xeon E3-1275 v6 0x Single PSU ANR-C236N1-K1D00-i7 Intel Kabylake Core i7-7700 0x Single PSU ANR-C236N1-K1D00-i5 Intel Kabylake Core i5-7500 0x Single PSU ANR-C236N1-K1D00-i3 Intel Kabylake Core i3-7101E 0x Single PSU Product variants and order code CPU 10G Fiber PSU ANR-C236N1-S2D0T-E3-1275 Intel Xeon E3-1275 v5 2x Redundant PSU ANR-C236N1-S2D0T-E3-1268L Intel Xeon E3-1268L v5 2x Redundant PSU ANR-C236N1-S2D0T-E3-1225 Intel Xeon E3-1225 v5 2x Redundant PSU ANR-C236N1-S2D0T-i7 Intel Skylake Core i7-6700(TE) 2x Redundant PSU ANR-C236N1-S2D0T-i5 Intel Skylake Core i5-6500 2x Redundant PSU ANR-C236N1-S2D0T-i3 Intel Skylake Core i3-6100(TE) 2x Redundant PSU ANR-C236N1-S2D0T-G4400 Intel Skylake Pentium G4400 2x Redundant PSU ANR-C236N1-S2D00-E3-1275 Intel Xeon E3-1275 v5 0x Redundant PSU ANR-C236N1-S2D00-E3-1268L Intel Xeon E3-1268L v5 0x Redundant PSU ANR-C236N1-S2D00-E3-1225 Intel Xeon E3-1225 v5 0x Redundant PSU ANR-C236N1-S2D00-i7 Intel Skylake Core i7-6700(TE) 0x Redundant PSU ANR-C236N1-S2D00-i5 Intel Skylake Core i5-6500 0x Redundant PSU ANR-C236N1-S2D00-i3 Intel Skylake Core i3-6100(TE) 0x Redundant PSU ANR-C236N1-S2D00-G4400 Intel Skylake Pentium G4400 0x Single PSU ANR-C236N1-S1D00-E3-1275 Intel Xeon E3-1275 v5 0x Single PSU ANR-C236N1-S1D00-E3-1268L Intel Xeon E3-1268L v5 0x Single PSU ANR-C236N1-S1D00-E3-1225 Intel Xeon E3-1225 v5 0x Single PSU ANR-C236N1-S1D00-i7 Intel Skylake Core i7-6700(TE) 0x Single PSU ANR-C236N1-S1D00-i5 Intel Skylake Core i5-6500 0x Single PSU ANR-C236N1-S1D00-i3 Intel Skylake Core i3-6100(TE) 0x Single PSU ANR-C236N1-S1D00-G4400 Intel Skylake Pentium G4400 0x Single PSU
