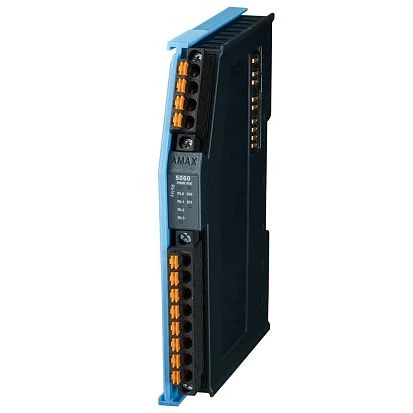

AMAX-5060-A
Advantech
SKU: 10684600
4-ch Relay with 2-ch DI EtherCAT Module, 24 VDC
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Supported Protocols
Industrial Protocols
EtherCAT slave
Digital Input
Total channels of digital input
2
Type
Wet contact
Level of Logic "0"
0~3 V
Level of Logic "1"
10~30 V
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form A)
4
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
30 mm
Depth
145 mm
Height
120 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
0-95%
Dimensions
Net Weight
0.08 kg
Gross Weight
0.1 kg
