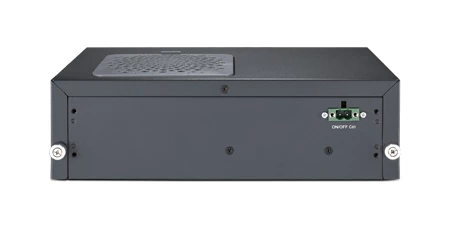

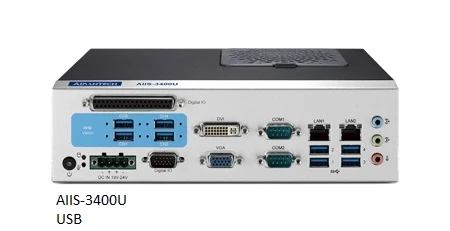

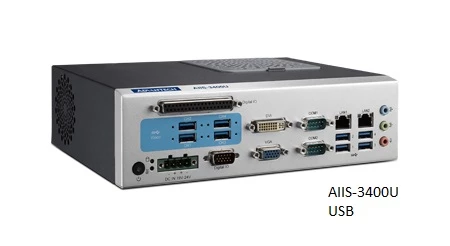

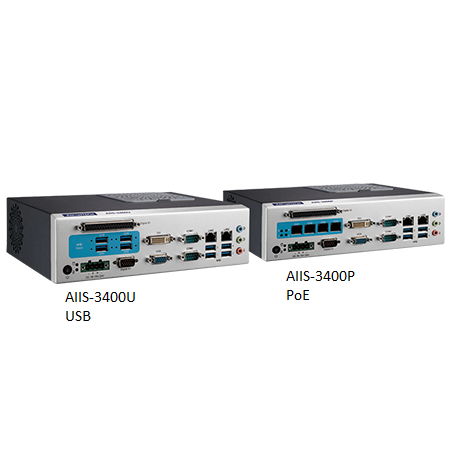

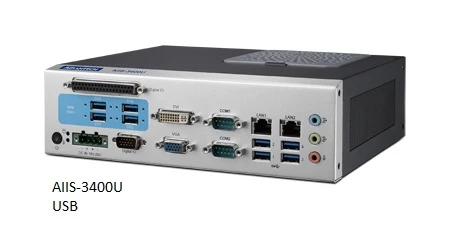

Compact Vision System, Supports Intel 6th gen. Core i CPU (LGA1151), Intel H110 Chipset, DDR4, VGA, DVI-D, 2xGB LAN, 2xCOM, 4xUSB 3.0, CFast, 1xSATA 2.5" Bay, 4DI/4DO
AIIS-3400U-00B1
Advantech
SKU: 09586000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Type
Fan
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7, Pentium
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, VGA
Ethernet
Controller Type
Intel i210-AT, Intel i219
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
SATA 3
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DVI-D, DB15 VGA, 2xRJ45, 4xUSB, Line Out
System Power Input
Input Voltage DC
19..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows 10
Dimensions and weight
Width
230 mm
Height
70 mm
Depth
175 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
0.5Grms, random, 5~500Hz, 3 axes, 1 hr/axis
Shock
10G, half sine wave, 11 ms duration
Standards and Certifications
Certifications
CE, FCC
Safety
CCC, UL
Dimensions
Net Weight
2.2 kg
Gross Weight
2.5 kg
