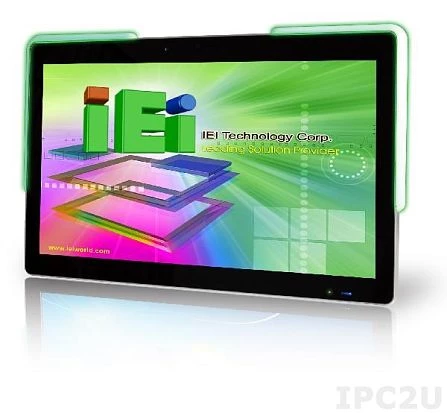

AFL2-W21A-H61-i3/PC-R10
IEI
SKU: 06268700
21.5" WXGA+ Fanless Panel PC, 250cd/m2, Capacitive Touch Screen, Intel Core i3 Dual Core 2xxxT CPU, 4GB DDR3 RAM, VGA, HDMI, 1xGbit LAN, 3xCOM, 5xUSB, SATA, 802.11b/g/n,,Camera, 120W Power Supply
End-of-life product
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Desktop, Wall, Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP64
Type
Fan
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i3-2100T
Max CPU frequency
2.5 GHz
Chipset
Chipset
Intel H61
Memory
Form-factor
DDR3
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
3
RS-232
2
RS-422/485
1
USB Total
5
USB 2.0
3
USB v3.x
2
Audio
Audio Controller
Realtek ALC892
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Mini-PCIe/Mini Card
1
LED / Controls
LED
LED Bar, Power LED
Controls
On/Off, 1xReset, KeyPad, Remote Controller, AT/ATX Switch, CMOS Reset
Connectors
Connectors
3xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 5xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows XP Embedded, Windows Embedded Standard 7, Linux OS
Dimensions and weight
Width
546.9 mm
Height
345.8 mm
Depth
70.4 mm
Operating Conditions
Operating Temperature
-10..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
8.3 kg
Gross Weight
11.3 kg
