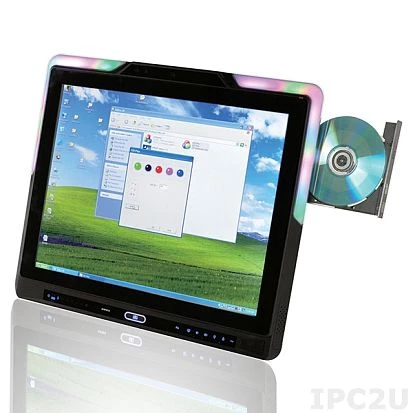

AFL2-17AB-H61-i5/R-R13

IEI
SKU: 06982100
17"T LCD PanelPC,350cd/m2, Resistive Touch Screen, Intel Core i5 Dual Core 2xxxT CPU, 4GB DDR3 RAM, HDMI, VGA, 2xGbit LAN, 3xCOM, 5xUSB, Mini USB,MicroSD, 802.11g/n WLAN, Audio, 2.5" SATA Drive Bay, 2MP Camera, without LED bar, 120W Power Adapter
End-of-life product
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Desktop, Panel, Wall, 19" Rackmount, Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP64
Type
Fan
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i5
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel H61
Memory
Form-factor
DDR3
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
3
RS-232
2
RS-422/485
1
USB Total
6
USB 2.0
4
USB v3.x
2
Audio
Audio Controller
Realtek ALC892
Drive interfaces
MicroSD
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off, 1xReset, KeyPad, Remote Controller, AT/ATX Switch, CMOS Reset
Connectors
Connectors
3xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 5xUSB, Mic In, Line Out, DC Input, 1xMini USB
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows XP Embedded, Windows Embedded Standard 7, Linux OS
Dimensions and weight
Width
418 mm
Height
378 mm
Depth
65 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
6.9 kg
Gross Weight
9 kg
