QBiX-Pro-AMDA1605H-A1

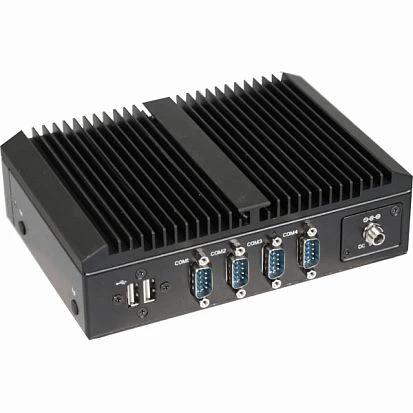

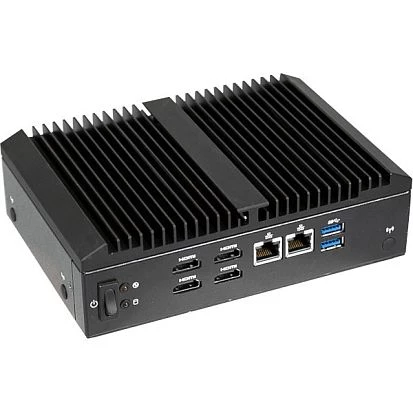

QBiX-Pro-AMDA1605 with AMD Ryzen V1605B Quad Core CPU, up to 32 GB DDR4 RAM, Dual LAN, 2xCOM, Mini PCIe, M.2 The QBiX-Pro-AMDA1605 is a fanless Mini PC based on the powerful AMD Ryzen V1605B processor released in 2018. It adds versatile I/O ports including four HDMI outputs, Dual LAN, Serial COM and four USB ports to offer a universal, functional, compact and efficient industrial PC. For operation as a fanless mini-PC with high performance, the QBiX-Pro-AMDA1605 uses an AMD Ryzen V1605B CPU with four cores and eight threads operating at a clock speed of 2.00 GHz. The use of up to 32 GB DDR4 RAM as main memory ensures fast data exchange between the processor, the GPU, the interfaces and other components of the embedded system. The QBiX-Pro-AMDA1605 provides a versatile selection of external ports for peripherals and networking - including dual GbE LAN, dual serial COM interfaces in RS232 and RS232/422/485, two USB 2.0 and two USB 3.0 ports, as well as internal M.2, Mini PCI Express and a 2.5" SATA Drive Bay. The QBiX-Pro-AMDA1605 is designed for use as a fanless Mini-PC in industrial and commercial environments where maximum energy efficiency with high capacity of resources is relevant 24/7/365. Due to its well-balanced specifications, the compact embedded PC opens up applications ranging from technical automation in autonomous systems to IoT control servers, telecommunications and digital signage or smart surveillance with output via quadruple HDMI.
