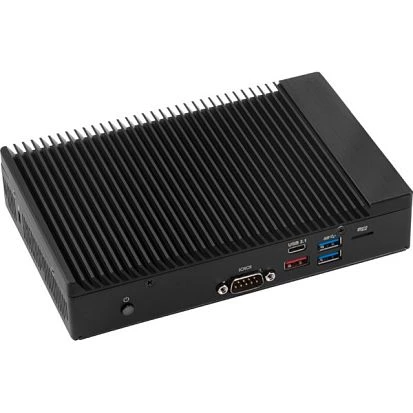

Fanless Embedded PC QBiX Plus, Intel Core i3-7100U 2.4GHz, 4GB RAM, 128GB SSD, 2xHDMI, 2xGbE, 4xUSB 3.0, 1xUSB 3.1, 1xUSB 3.1 Type C,1x RS-232/422/485, Micro SD card slot, M.2 2280 Key B/M, M.2 2230 Key E, Mini-PCIe,19V DC-In, DC power adapter
QBiX-Plus-KBLA7100-A1
GIGAIPC
SKU: 57081500
End-of-life product
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i3-7100U
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 620
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
6
USB v3.x
6
Audio
Audio Controller
Realtek ALC255
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes
Connectors
Connectors

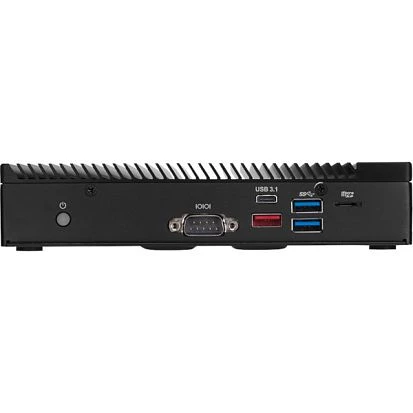

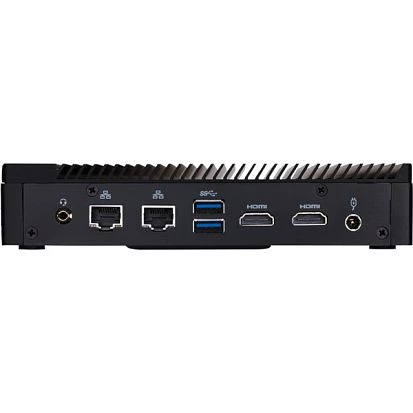

2xHDMI, 2xRJ45 Ethernet, 1xUSB, 4xUSB, Audio (in/out/Mic), DC Input, DB9 Male, MicroSD card slot, USB type C
System Power Input
Input Voltage DC
19..19 V
Power Consumption
90 W
Power Supply
Type of Power Supply
DC-DC
Output Power
90 W
Dimensions and weight
Width
180 mm
Height
36 mm
Depth
117 mm
Operating Conditions
Operating Temperature
0..40 °C
Dimensions
Net Weight
1.36 kg
Gross Weight
2.06 kg
