Nexcom Vehicle Telematics Computers (VTC): Scalable Performance for Mobile Computing
The Vehicle Telematics Computer (VTC) series by Nexcom, offers a diverse lineup of in-vehicle computing solutions tailored for mobile and transportation-specific applications. Built to meet the challenges of harsh environments such as public transport systems, emergency response units, law enforcement fleets, and logistics vehicles, the VTC platforms deliver a robust mix of power efficiency, performance, and rugged design.
Each series in the VTC lineup is purpose-built for different needs, from low-power applications such as GPS tracking and data logging, to high-performance tasks like AI-assisted video analytics and complex vehicle-to-network communication. This article provides a detailed overview of the main categories: ARM Compact, Atom, and Intel Core, as represented in Nexcom’s official portfolio. Nexcom delivers a clear pathway for customers to select the best-fit platform depending on performance requirements, power constraints, and field conditions
Whether the priority is compactness and energy saving or advanced video processing and AI at the edge, Nexcom VTCs represent reliable building blocks for next-generation transportation systems. With certified rugged designs, flexible connectivity, and long-term support, these platforms remain at the forefront of mobile computing innovation.
ARM Compact
Designed with power efficiency and compactness in mind, the Nexcom VTC ARM Compact series is ideal for lightweight vehicular applications. Built on ARM architecture, these systems are particularly suited for fleet telematics, location tracking, and light-duty monitoring. With fanless designs and low power consumption, these units ensure silent operation, high reliability, and resistance to vibration, making them perfect for non-stop vehicle deployments with limited space or thermal budget.
These units offer essential connectivity like CAN Bus, GPS, and LTE support and are often deployed in light commercial vehicles and public transit systems where compactness and durability are prioritized over raw perform
Featured products:
- Nexcom - VTC 210 Ultra-compact in-vehicle computer based on Rockchip RK3328 with WWAN/Wi-Fi support, GPS/GNSS integrated, and CAN Bus support.
In-Vehicle Embedded Computer, Rockchip RK3328 ARM CPU, 2GB DDR4 RAM, 16GB eMMC Storage, 1xHDMI, 2xGbE LAN, 1xCOM, 1xUSB, Audio, GPS, 1xM.2 3042 Key-B, 9-36VDC-in Terminal Block
Atom
The Nexcom VTC Atom series, listed under “VTC Atom” on IPC2U and split across Atom® Compact and Atom® Performance in Nexcom’s catalog, is one of the most versatile product families for mid-level in-vehicle computing. These systems utilize Intel® Atom® processors, providing a strong balance of energy efficiency and functional performance.
They are ideal for applications such as digital signage in buses, driver behavior monitoring, ticketing systems, and telematics in utility vehicles. The compact models (e.g., VTC 1010, VTC 1020) are optimized for low-power installations with basic processing needs, while the performance variants (e.g., VTC 6210, VTC 6232) integrate higher RAM capacity, better graphics, and extensive I/O support, including multiple video outputs and AI inference capabilities.
Energy-efficient Models:
- Nexcom - VTC 1921-IP Fanless in-vehicle computer with Intel Atom E3845, dual CAN Bus, rugged M12 LAN/DC-in/Multiport design.
- Nexcom - VTC 1021-C2K Compact telematics computer with Atom E3826, dual SIM slots for WWAN, GPS/GLONASS integrated, and ignition control.
- Nexcom - VTC 1030 Entry-level in-vehicle system with Intel Atom E3825, GPS, WWAN module options, and CAN Bus.

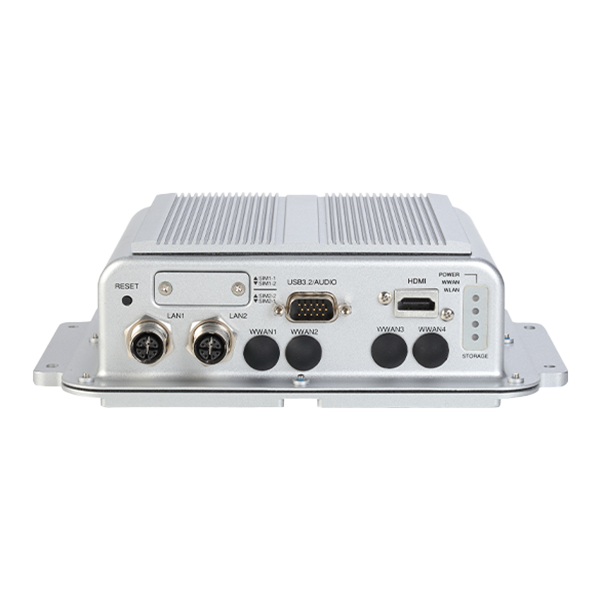

Vehicle IoT Gateway, IP67, Intel Atom x7211RE CPU, (Up to 32GB) 4GB DDR4 RAM, HDMI, 2x2.5GbE M12 LAN, 1xDB15 (USB 3.2, Audio), 2xM12 (3xCOM/DIO/2xCAN/USB 2.0), 4xSIM, GPS, 1xMiniPCIe, 2.5" Bay, 1xM.2 Key-B, 1xM.2 Key-E, 9-36VDC M12
Fanless In-Vehicle Computer, Intel Atom x5-E3940 1.8GHz CPU, 4GB DDR3L RAM, VGA/HDMI, 2xGbE & 2xPoE LAN, 3xUSB, 3xCOM, 1xCAN 2.0B, 6-bit DIO, 1x2.5'' Drive Bay, 3xMiniPCIe, U-blox M8N GPS, 12V/2A DC-out, 9-36VDC-in
Compact In-Vehicle Computer, Intel Atom x6211E 1.3GHz CPU, 4GB DDR4 RAM, VGA, HDMI, 2x2.5GbE LAN, 2xUSB, 2xCOM, 1xDB15 (CAN, DIO), 1x2.5" Drive Bay, 1xMiniPCIe, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 9-36VDC-in
High-performance Models:
- Nexcom - VTC 6232-C4SIP High-end in-vehicle platform, utilize rugged M12 ports for PoE/USB/Audio, optional WWAN functionality, and rich expansion slots variety.
- Nexcom - VTC 6210-VR4 Robust vehicle computer with Atom x6425E, AI module or Video capture card optional expansion, WWAN/Wi-Fi modules support, 4-channel video input.
Rugged In-Vehicle Computer, Intel Atom x7433RE 1.5GHz CPU, 8GB DDR5 RAM, 64GB eMMC, VGA, 5x2.5GbE M12 (4xLAN/1xPoE), 2xUSB 3.2, 2xUSB 2.0 M12, 2xCOM, 2xDB15 (2xCOM/DIO/CAN), GPS, 2x2.5" Bay, 1xMiniPCIe, 1xM.2 Key-B, 1xM.2 Key-E, 9-48VDC-in M12
Fanless In-Vehicle Computer, Intel Atom E3845 1.91GHz CPU, 4GB DDR3L RAM, VGA, DP, 2xGbE LAN, 2xCOM, 1xUSB 3.0, 2xUSB 2.0, 1xTerminal Block (GPIO/CAN), U-blox NEO-M8N GPS, 4xAnalog Video-In, 1x2.5" Drive Bay, CFast, 4xMiniPCIe (3xFull/1xHalf), Audio, 9-36VDC-in
Intel Core
The Nexcom VTC Intel Core series, divided into Core™ Power Efficient and Core™ Performance on Nexcom’s site, delivers optimal computing capabilities for various in-vehicle applications and environments.
These systems are based on Intel® Core™ i3/i5/i7 processors and support multi-display setups, large memory capacities, hardware acceleration for AI workloads, and extensive I/O options. Typical deployment scenarios include mobile NVRs (network video recorders), advanced driver assistance systems (ADAS), law enforcement vehicles, and AI-based surveillance in rail or logistics networks.
Power-efficient Models:
- Nexcom - VTC 7280-7 Slimline Core i7-based system with four SIM slots, ignition control, LTE/5G expansion support, and edge AI application scenarios.
- Nexcom - VTC 7260-7C4 Compact Core i7 in-vehicle computer supporting three independent displays, GPS/GNSS, and 4xPoE ports for surveillance applications.
- Nexcom - VTC 7260-Series Vehicle PC for smart transportation with Intel Core i5/i7, fanless design, and extended temperature tolerance.
Vehicle AI Computer, Intel Core Ultra 7 155H CPU, (Up to 32GB) 8GB DDR5 RAM, VGA/HDMI, 2x2.5GbE LAN, 1xUSB 3.2, 3xUSB 2.0, 3xCOM, 1xDB15 (8-bit DIO/CAN), GPS, Audio, 2x2.5" Bay, 2xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 9-36VDC-in
Compact Core i7 in-vehicle computer supporting three independent displays, GPS/GNSS, and 4xPoE ports for surveillance applications.
Vehicle Computer, Intel 11th Gen Core i7/i5 CPU, Up to 64GB DDR4 RAM, VGA, DP, HDMI, 2x2.5GbE LAN, 1xGbE LAN, 4xUSB, 3xCOM, DB15 (DIO/CAN), U-blox NEO-M9N GPS, 1x2.5" Drive Bay, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 9-36VDC-in
High-performance Models:
- Nexcom - VTC 7270 Ruggedized vehicle computer with 12/13th Gen (Core i) Processors support, triple display output, and extended automotive I/O
- Nexcom - VTC 7270-7C8 Ruggedized vehicle computer with 8th Gen Core i7 Processor, triple display output, and additional 8xPoE LAN ports, making it suitable for various application fields (fleet management, logistics/AMR, constructions, and security surveillance).
Vehicle Telematics Computer, Intel 12/13th Gen Core i3/i5/i7/i9 CPU, Up to 64GB DDR5 RAM, VGA/HDMI/DP, 2x2.5GbE LAN, 1xGbE LAN, 4xCOM, 6xUSB, DB15 (DIO/2xCAN), 2x2.5" Drive Bay, 2xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, TPM 2.0, 9-36VDC-in
Vehicle Telematics Computer, Intel i7-8700T 2.4GHz CPU, 8GB DDR4 RAM, VGA, HDMI, ultraONE+, 8xPoE LAN, 1xGbE LAN, 3xCOM, 6xUSB 3.1, DB15 (DIO/CAN), 2x2.5" Drive Bay, 3xMiniPCIe Full-Size, 1xM.2 Key-B, Audio, 9-36VDC-In
