PLANET Technology’s IFGS series of unmanaged Ethernet switches—comprising the IFGS-624PTF , IFGS-620TF , and IFGS-1222TF — are engineered for demanding industrial applications. Designed to operate in harsh environments, they offer outstanding reliability, power efficiency, and robust connectivity for mission-critical systems in automation, transport, surveillance, and smart infrastructure.
Three switches with a robust core architecture optimized for industrial use

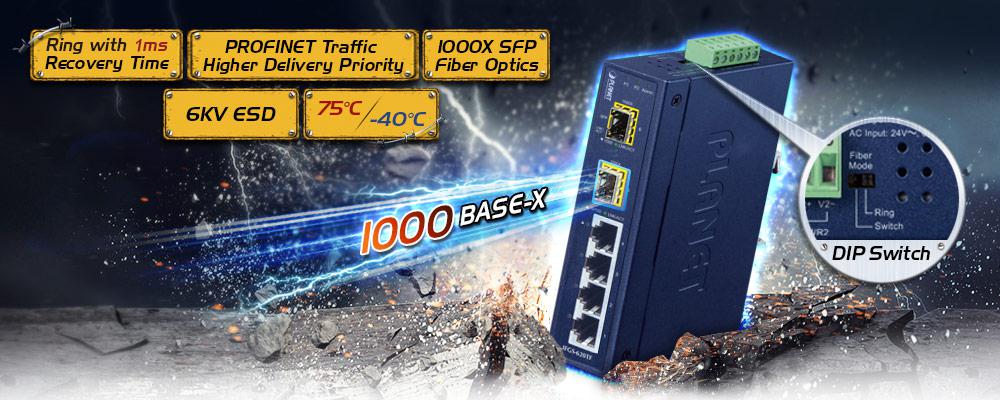

PROFINET Traffic Prioritization : Supports automation-specific Ethernet communications with traffic prioritization, ideal for real-time industrial control.
High Resistance to Harsh Environments : With an operating temperature range from -40 to 75°C and IP30-rated aluminum housings, these devices are suitable for extreme indoor and outdoor conditions.

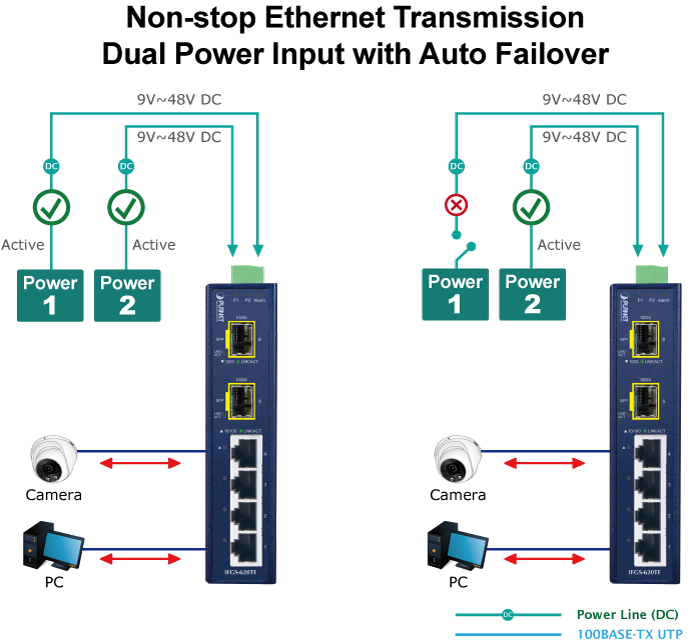

Redundant Power Inputs : Dual DC input design ensures continuous operation, even if one power source fails.

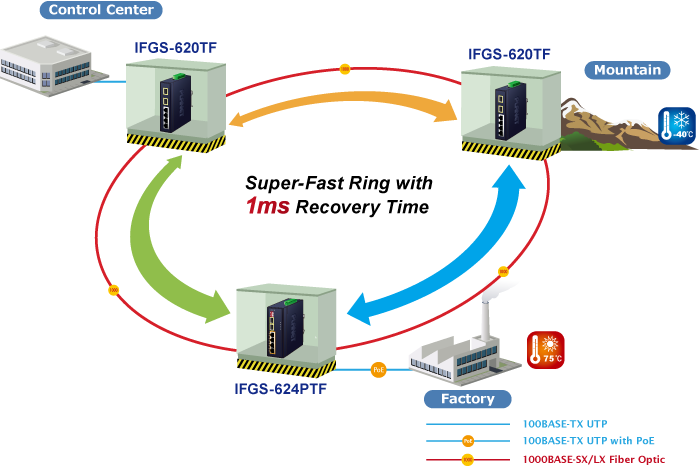

Rapid Ring Redundancy : Supports fault-tolerant ring networks with recovery times as low as 1ms, keeping networks operational during link failure.
Flexible Mounting and Deployment : DIN-rail and wall-mountable designs make installation easy in industrial control cabinets.
Fiber Uplink Ports : SFP slots provide long-range uplinks via fiber optics, allowing scalable and interference-free connections.
IFGS-624PTF : Industrial PoE+ switch with extended reach
The IFGS-624PTF integrates four PoE+ ports, making it perfect for scenarios requiring both data and power over a single cable.
Key features
- 4 PoE+ (IEEE 802.3at) ports delivering up to 30W each
- Power Boost : Accepts 12~54V DC input, boosts to 54V internally
- Extend mode : PoE transmission up to 250 meters at 10Mbps
- 2 Gigabit SFP fiber uplinks
- Real-time PoE power status via LED indicators
Use cases

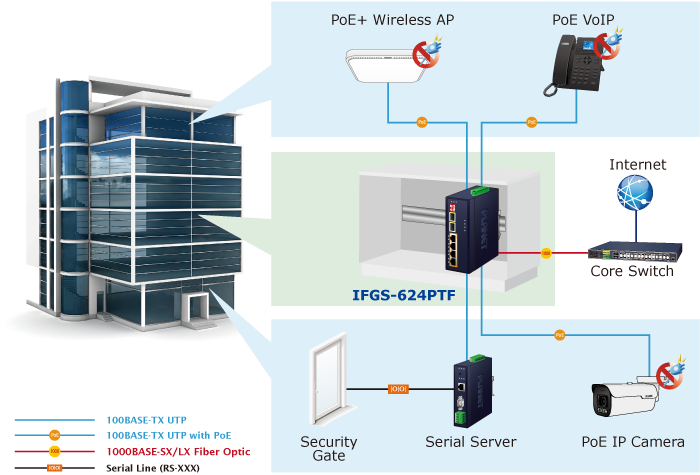

- Smart surveillance systems : Power and connect IP cameras across large factory floors or remote facilities.
- Building automation : Easily deploy PoE-enabled sensors, access points, and intercoms without the need for local power.
- Public transport systems : Ideal for powering surveillance and monitoring devices on platforms or along tracks.
Why it stands out
This model simplifies infrastructure by eliminating the need for external power sources at the edge, offering extended coverage and centralized management of powered devices.
IFGS-620TF : compact industrial switch for core Ethernet connectivity
The IFGS-620TF is a highly compact and efficient industrial switch, designed for stable and low-latency Ethernet communication in automation and control networks.
Key features
- 4 Fast Ethernet ports (10/100TX)
- 2 Gigabit SFP fiber ports
- Compact design for confined spaces
- Low power consumption and fanless operation
Use cases
- Factory automation : Connect PLCs, HMIs, and controllers in production lines.

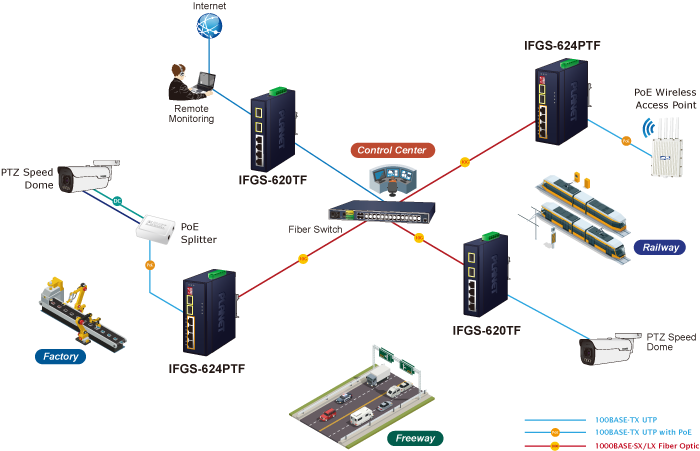

- ITS (Intelligent Transport Systems) : Deploy in roadside cabinets to relay data from sensors to the control center.
- Warehousing : Provide reliable data connections to barcode scanners and industrial terminals.
Why it stands out
This model offers a cost-effective, space-saving solution for networks that do not require PoE but demand high reliability and fiber flexibility.
IFGS-1222TF : Versatile switch for Dense Industrial Networks
The IFGS-1222TF is built for larger and more complex network environments requiring a mix of port types and higher throughput.
Key features
- 8 Fast Ethernet ports (10/100TX)
- 2 Gigabit copper ports (10/100/1000T)
- 2 Gigabit SFP fiber uplink ports
- Total of 12 ports for maximum flexibility
- Robust aluminum housing for industrial durability
Use cases
- Production facilities : Connect multiple machines, sensors, and workstations in dense industrial settings.
- Energy sector : Build robust communication networks in solar plants, substations, or wind farms.
- Smart cities : Aggregate data from various sensors, traffic systems, and edge devices in urban deployments.
Why it stands out
With a wide array of port options, this switch accommodates various device types and scales well with future network expansions.
Overall
PLANET’s IFGS series, comprising the IFGS-624PTF , IFGS-620TF , and IFGS-1222TF, delivers dependable, industrial-grade Ethernet switching tailored for the unique challenges of modern automation and infrastructure environments. Whether your project demands PoE+, compact Ethernet connectivity, or extensive port versatility, the IFGS lineup provides a rugged, ready-to-deploy solution built to last.
Find more DIN-Rail Mounted Unmanaged Switches and Industrial Ethernet Switches in our catalog.
