Wi-Fi 7 Infrastructure Revolution: PLANET WDAP-C5100BE Enterprise Wireless Access Point for Industrial Environments
Industrial Personal Computer 2U GmbH introduces the PLANET WDAP-C5100BE, a business-grade Wi-Fi 7 ceiling-mount wireless access point engineered for high-performance industrial networking applications. This cutting-edge solution leverages IEEE 802.11be technology to deliver 5100 Mbps aggregate throughput, representing the next generation of wireless infrastructure for mission-critical industrial environments, manufacturing facilities, and smart factory implementations.
Advanced Wi-Fi 7 Technology Implementation

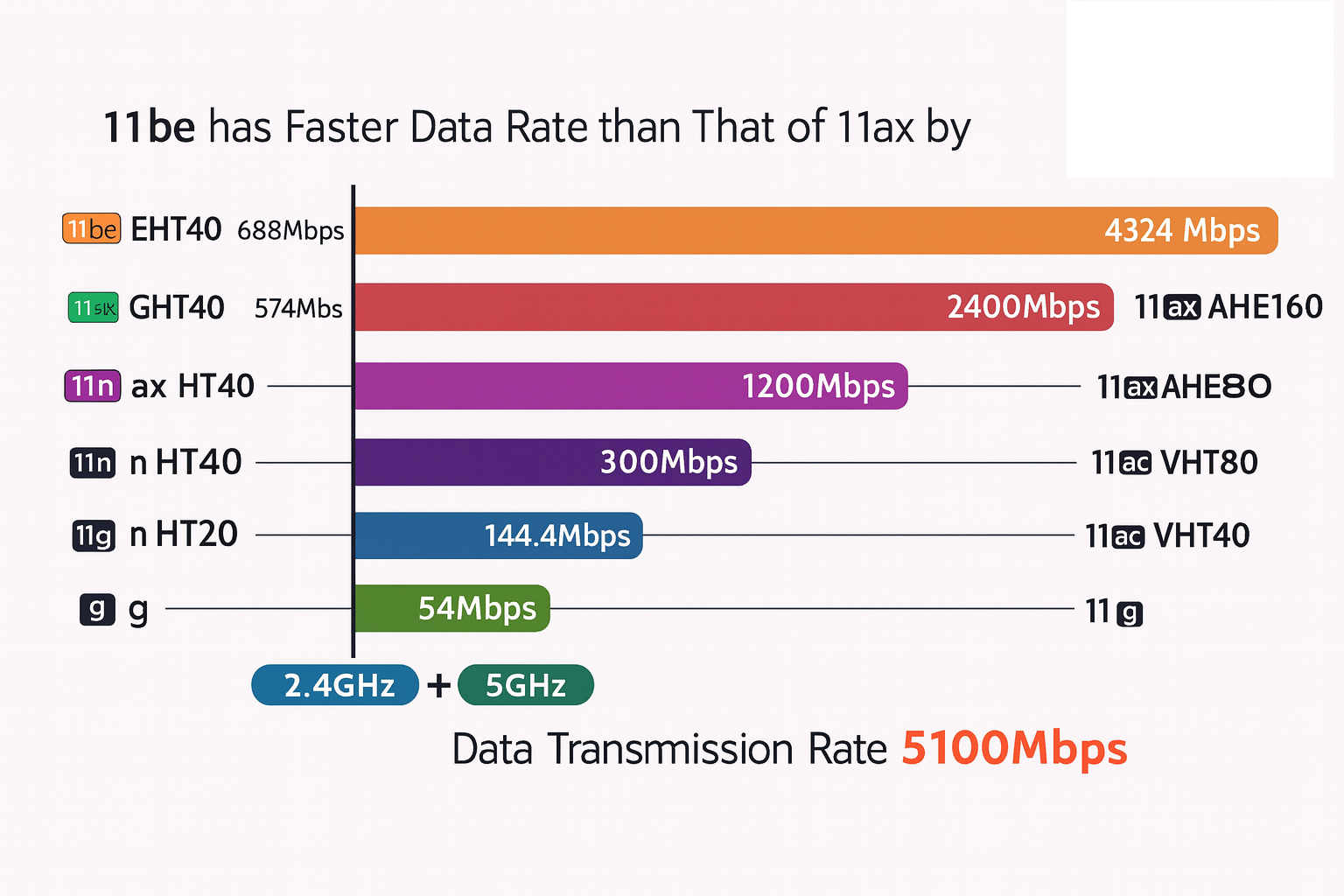

The WDAP-C5100BE implements state-of-the-art Wi-Fi 7 (802.11be) architecture with revolutionary 4096-QAM modulation and MIMO-OFDMA technology. Operating across concurrent dual-band frequencies, the device achieves peak performance of 4324 Mbps on the 5 GHz band and 689 Mbps on the 2.4 GHz band, delivering threefold improvement over Wi-Fi 6E standards while maintaining exceptional stability for industrial applications.
Ultra-wide 160 MHz channel bandwidth support doubles the available spectrum compared to Wi-Fi 6E, implementing advanced spectrum puncturing techniques to minimize interference in electromagnetically complex industrial environments. This technological advancement ensures optimal performance for bandwidth-intensive applications including real-time monitoring systems, machine vision, and Industry 4.0 implementations.
Enhanced Modulation and Throughput Optimization
With 4096-QAM encoding implementation, the WDAP-C5100BE transmits significantly more data per signal compared to previous Wi-Fi generations, increasing overall network throughput while maintaining connection stability. This advanced modulation technique proves essential for high-bandwidth industrial applications such as 4K/8K video streaming for quality control systems, AR/VR maintenance experiences, and real-time cloud-based industrial services.
Precision RF Engineering for Industrial Deployments
Engineered with five internal 3dBi antennas (2 × 2.4GHz, 3 × 5GHz configuration), the WDAP-C5100BE incorporates advanced beamforming technology to direct Wi-Fi signals precisely toward connected devices, enhancing coverage stability throughout industrial deployment areas. The robust dual-band operation ensures seamless connectivity across both frequency bands, guaranteeing consistent data transfer and stable connections even in interference-prone, high-density industrial scenarios.
Spectrum Optimization and Interference Management

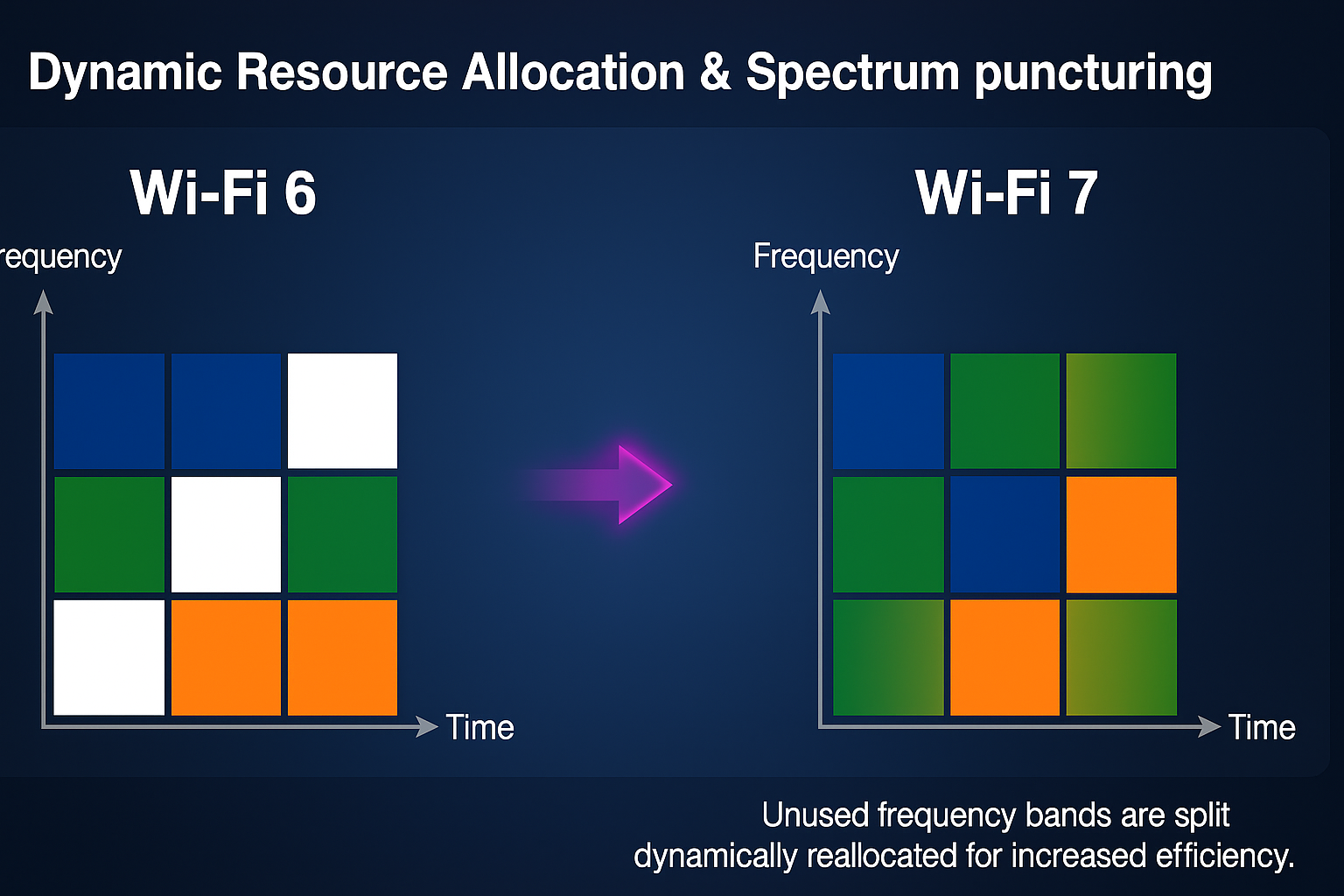

Dynamic allocation of resource units and advanced spectrum puncturing techniques maximize spectrum utilization efficiency in densely-populated wireless environments, crucial for manufacturing facilities where numerous industrial IoT devices and automated systems require reliable connectivity. BSS Coloring technology effectively differentiates overlapping networks, minimizing interference and maintaining stable connections throughout industrial deployments.
Business-Oriented Performance Characteristics

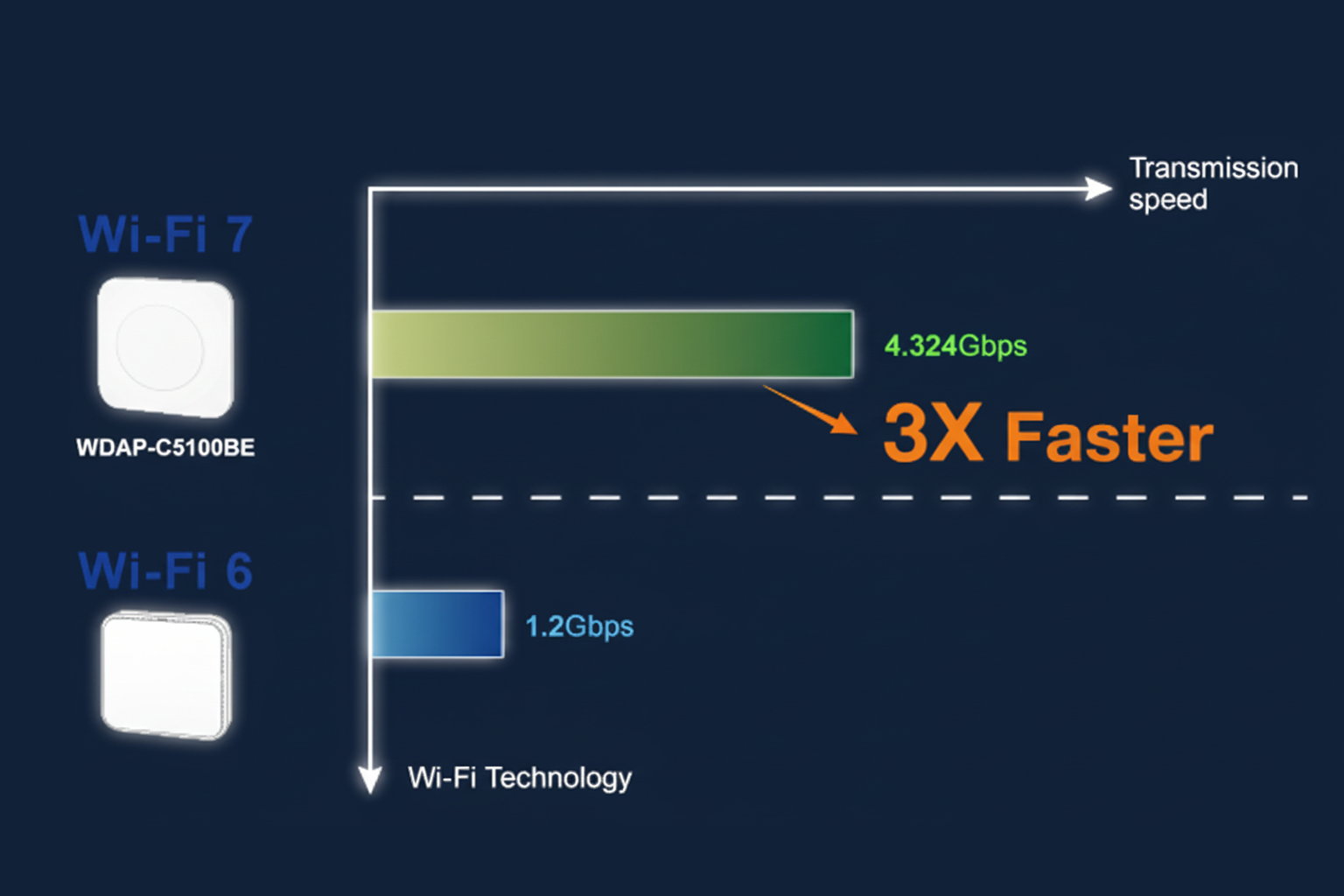

The WDAP-C5100BE delivers enterprise-grade performance metrics optimized for industrial environments, focusing on network stability, efficiency, and consistent high-performance operation. With speeds reaching up to 4.324 Gbps on the 5 GHz band, the access point provides a threefold performance enhancement compared to Wi-Fi 6E while ensuring stable and continuous connectivity for mission-critical industrial applications.
Ultra-Low Latency for Real-Time Applications

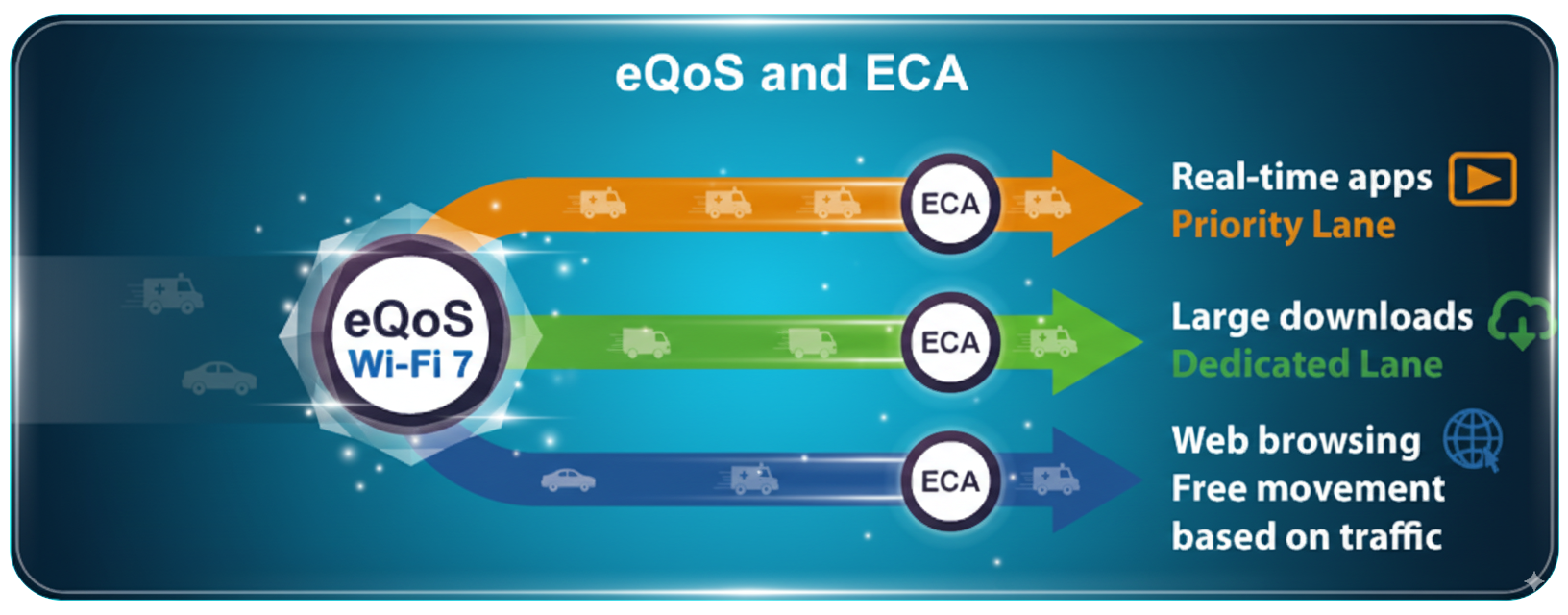

Advanced Quality of Service (eQoS) implementation with enhanced channel access technologies dynamically prioritizes data packets to minimize latency and ensure consistent performance for time-critical industrial applications. Ultra-low latency characteristics are essential for real-time applications including AR/VR maintenance systems, automated control systems, video conferencing for remote technical support, and real-time data acquisition in industrial environments.
Precision Interference Control and Beamforming
BSS Coloring technology implementation effectively differentiates overlapping networks, minimizing interference and maintaining stable connections in complex industrial wireless environments. Advanced beamforming technology directs Wi-Fi signals toward connected devices with enhanced precision, improving coverage stability and signal quality throughout the deployment area while reducing power consumption and extending battery life for connected IoT devices.
Industrial-Grade Security and Network Management
Comprehensive enterprise-grade security implementation includes WPA3-PSK, WPA2-PSK, and WPA/WPA2 Enterprise authentication methods with 802.1X RADIUS support. Advanced encryption protocols ensure robust data protection and prevent unauthorized access, making the WDAP-C5100BE ideal for sensitive industrial applications requiring stringent cybersecurity measures. Access Control List (ACL) functionality provides granular network access management with IP/Port/MAC filtering capabilities.
Versatile Deployment Modes and Centralized Management

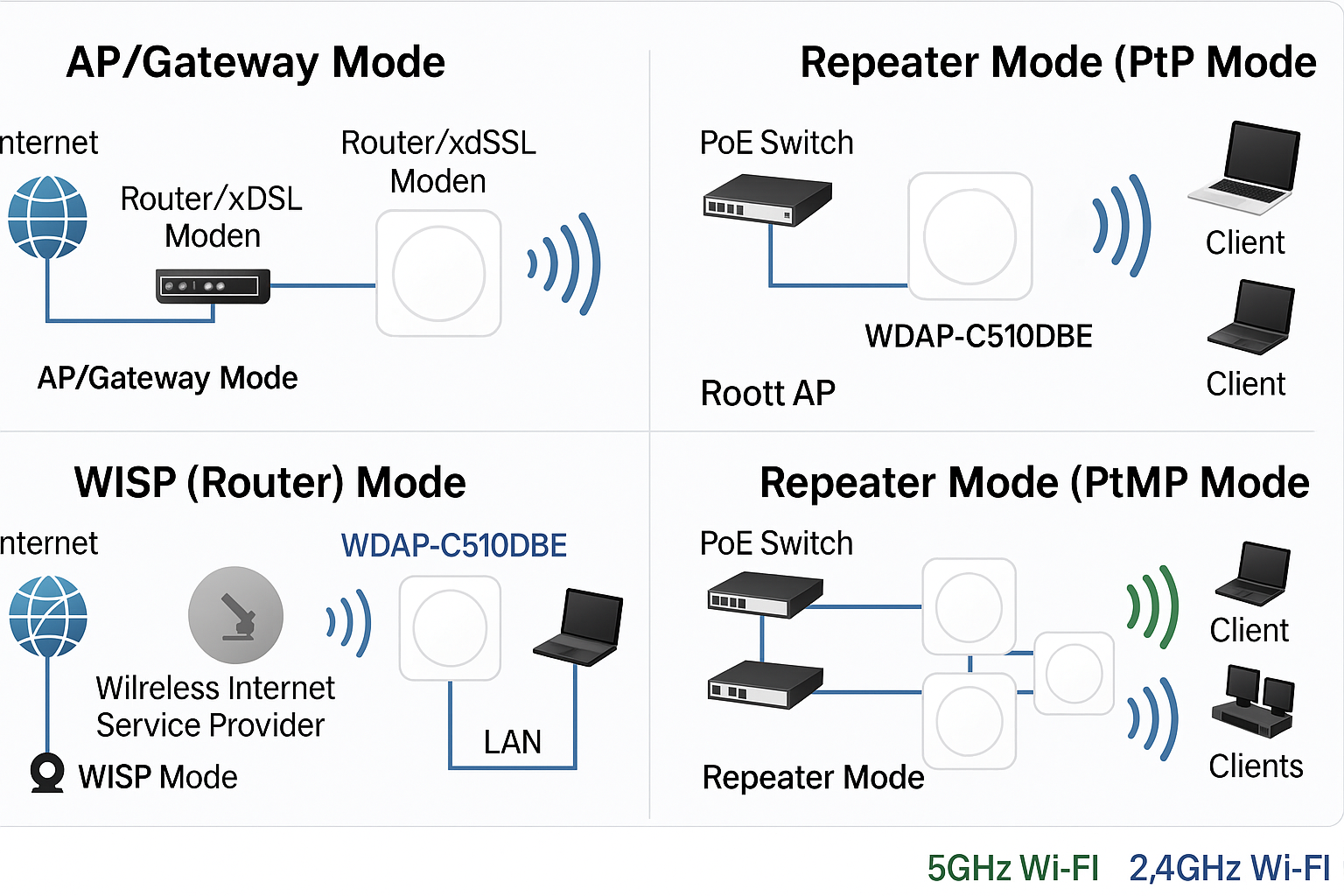

Multiple operation modes (Access Point, Gateway, Repeater, WISP) offer deployment flexibility for diverse industrial network topologies. The device supports IEEE 802.3at PoE+ power delivery (48V DC, <15W consumption), simplifying installation in industrial environments while maintaining compatibility with existing network infrastructure. Remote management capabilities through PLANET CloudViewerPro application and NMS integration facilitate centralized monitoring and maintenance across distributed industrial deployments.
Comprehensive Application Scenarios
The WDAP-C5100BE addresses critical connectivity requirements across diverse industrial and commercial environments including manufacturing facilities, logistics centers, airports, large offices, conference centers, and smart city implementations. Its high-throughput capabilities support emerging industrial applications such as wireless machine monitoring, mobile robotic platforms, and comprehensive IoT device connectivity requiring reliable, low-latency performance.
Technical Specifications Summary
- Wireless Standards: IEEE 802.11be/ax/ac/n/a (5GHz), IEEE 802.11be/ax/n/g/b (2.4GHz)
- Maximum Aggregate Throughput: 5100 Mbps (4324 Mbps @ 5GHz, 689 Mbps @ 2.4GHz)
- Network Interfaces: 1 × 10/100/1000/2500BASE-T PoE+ WAN port, 1 × 10/100/1000BASE-T LAN port
- Channel Width Support: 20MHz, 40MHz, 80MHz, 160MHz
- Operating Temperature: -10°C to +55°C (industrial grade)
- Power Consumption: <15W via IEEE 802.3at PoE+ or 12V DC
- Maximum Client Support: 256 concurrent connections (128 recommended)
- SSID Support: Up to 8 SSIDs (4 per radio)
- Antenna Configuration: 5 × internal 3dBi antennas
- Dimensions: 220 × 225 × 42.5 mm (W × D × H)
- Weight: 628.5g
Integration with Industrial Computing Systems
As part of Industrial Personal Computer 2U GmbH's comprehensive industrial computing ecosystem, the WDAP-C5100BE provides essential wireless connectivity infrastructure for Panel PCs, embedded systems, industrial workstations, and Marine Panel PCs. The access point's advanced features support Industry 4.0 initiatives requiring robust wireless communication infrastructure for smart manufacturing implementations, automated process control systems, and real-time industrial monitoring applications.
Industrial Personal Computer 2U GmbH provides comprehensive technical support and integration services for the WDAP-C5100BE, ensuring optimal performance within industrial computing environments and supporting the evolution toward fully connected industrial ecosystems. The device represents a strategic advancement in wireless infrastructure technology, enabling seamless connectivity for next-generation industrial applications.
