PICO338

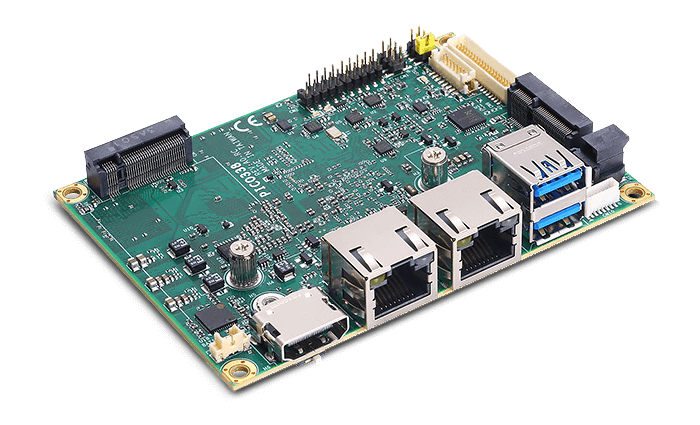

Axiomtek has announced the release of a new Pico-ITX single-board computer (SBC) called PICO338.
Key features:
- CPU: Intel N97 or Intel Core i3-N305 with a clock speed of up to 3.8 GHz.
- Memory: 8 GB LPDDR5 on board, optionally expandable to 16 GB.
- Network interfaces: two 2.5 Gbps RJ45 ports.
- Graphics: integrated Intel graphics core.
- Storage: support for M.2 Key B format 2242 (PCIe x2/USB 2.0) and M.2 Key E format 2230 (PCIe x1/USB 2.0).
- Input/output interfaces: HDMI, LVDS, two USB 3.2 ports, two USB 2.0 ports, COM port (RS-232/422/485)
- Power: 12 V DC input via a two-pin connector.
- Dimensions: 100 mm x 72 mm
- Operating temperature: from -20 ° C to +70 ° C.
- Optional accessories and expansion slots: SIM slot (AX93A19), audio codec (AX93A22), 1 x PCIe NVMe SSD up to 512 GB, 1 x M.2 Key B 3042/3052 (PCIe x1 / USB 3.2).
Basic system configurations:
Axiomtek has also introduced a new industrial case APC238 (E27P238100), specially designed for the PICO338 single-board computer
The dimensions of the APC238 are 161 mm wide, 100 mm deep and 50.6 mm high.
PICO338 is a powerful solution for use in automation systems, vehicles, medical devices and other embedded systems.
