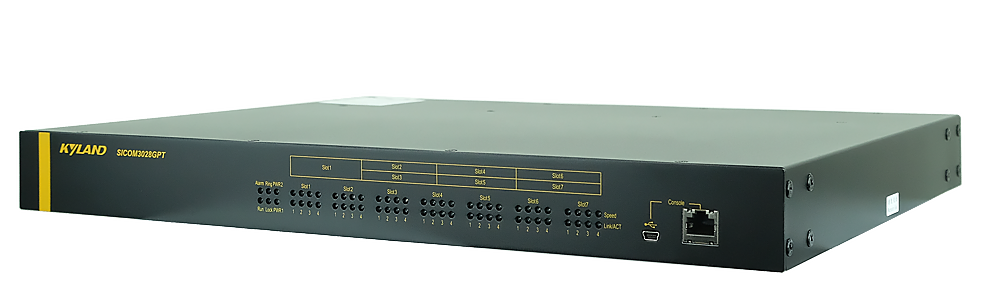

The SICOM3028GPT is a versatile industrial Ethernet switch designed to meet the demanding requirements of utility substations and industrial communication systems. With its modular architecture and comprehensive feature set, it offers a reliable and scalable networking solution for mission-critical applications.
Key Features
- Modular Design: The SICOM3028GPT supports up to 28 gigabit fiber/copper ports and offers one 1U slot and six 0.5U slots for interface modules, providing flexibility for future expansion.
- Time Synchronization: It supports IEEE1588v2 with synchronization precision reaching ±100 ns, and optional hardware-based PTP 1588 for enhanced timing accuracy.
- Redundancy Protocols: The switch supports various redundancy protocols including DT-Ring, DRP, MRP, MSTP, and VRRP to ensure network reliability.
- Layer 2 & 3 Support: It offers comprehensive Layer 2 features such as VLAN, multicast, QoS, and fast redundant ring, along with Layer 3 functions like RIP, OSPF, IGMP, and PIM.
- Management & Monitoring: The SICOM3028GPT supports multiple management interfaces including Console, Telnet, and Web (HTTP/HTTPS), and is compatible with SNMP for network management.
Expandable Modules
To meet diverse application needs, the SICOM3028GPT supports a range of optional modules:
- Time Synchronization Modules: HSR/PRP, TimeServer, GPS, IRIG-B, and TMS-trigger modules.
- Serial Communication: Serial server module supporting up to 24 RS232/422/485 ports.
- LED Module: For enhanced status indication and monitoring.
Compliance & Certifications
The SICOM3028GPT complies with industry standards including IEC61850-3 and IEEE1613, ensuring its suitability for harsh industrial environments.
