Compact assistants for your industry: introducing NEXCOM’s NISE 110 series

NEXCOM has presented a new series of NISE 110 embedded computers, designed to address a wide range of industrial applications and integrate Internet of Things (IoT) solutions.

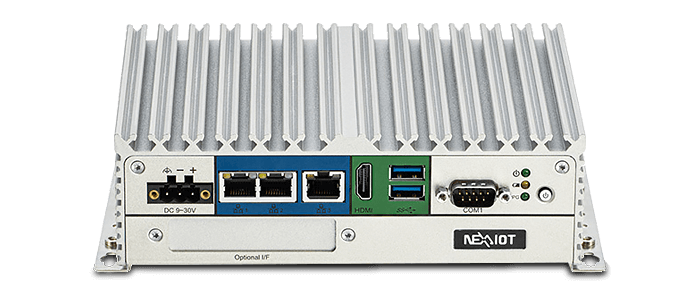

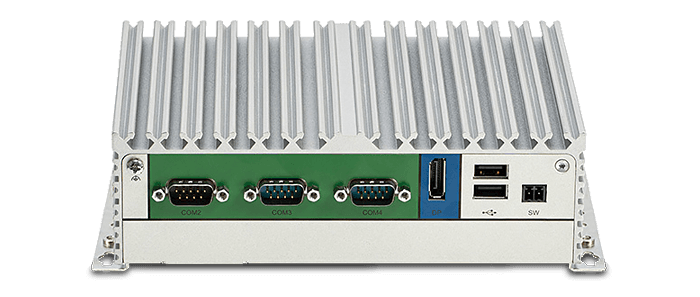

NISE 110 Series

Performance:

The new NISE 110 is based on 12th-generation CPUs. For example, the NISE-110-A01 configuration comes with the Intel N97 processor with a power consumption of only 12 W, while the lower-performance modification NISE-110-A02 has a Intel Atom x7211E chip with a power consumption of 6 W.

To achieve the best efficiency, NEXCOM has provided the newest embedded computer with one DDR5 SO-DIMM RAM slot with a maximum capacity of 16 GB.

Ethernet:

• All models in the NISE 110 series provide connectivity to three 2.5 Gigabit Ethernet ports supporting TSN, Wake-on-LAN, Teaming, and PXE technologies.
• TSN (Time-Sensitive Networking) ensures stable data transfer with minimal latency.
• Wake-on-LAN turns on the computer via a signal from the local network;
• Teaming combines multiple network cards to increase throughput and fault tolerance;
• PXE (Preboot Execution Environment) boots the operating system over the network without requiring physical media.

Expansion slots and storage:

The NISE-110-A01, like the NISE-110-A02, has Mini PCIe and M.2 B-key 2242/2280 expansion slots, allowing for the installation of Wi-Fi and LTE modules. However, it's important to note that using these slots will result in the loss of one of the installed solid-state drives, as these are the same slots used for SSDs.

• Display output: HDMI and DisplayPort
• USB ports: 2 USB 3.2 (Type-A) and 2 USB 2.0 (Type-A)
• Serial port: COM1 (RS-232), COM2 (RS-232), COM3, and COM4 (RS-232/RS-422/RS-485, auto-detection)

Power requirements and operational temperatures:

The NISE 110 series operates from a DC voltage of 9 to 30 V, with selectable AT or ATX power modes.

Operating temperatures vary depending on the configuration. The NISE-110-A01 configuration operates from -40°C to +60°C, while the NISE-110-A02 operates from -20°C to +60°C.

Application:

The new NISE 110 computers are designed to be used in a wide range of industries, including:

• Automation of manufacturing processes and assembly lines.
• Quality control and equipment condition monitoring.
• Transportation and logistics processes.
• Industrial applications for data collection and analysis.
• Solving problems in confined spaces and extreme environmental conditions.
