WP-2241M-CE7
ICP DAS
SKU: 08347300

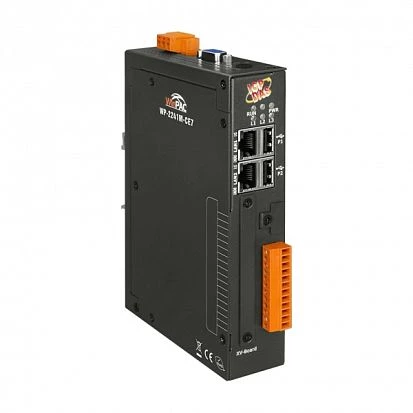

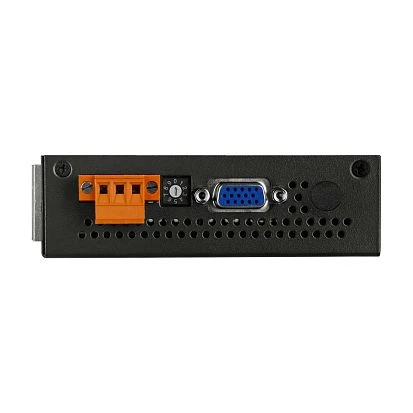

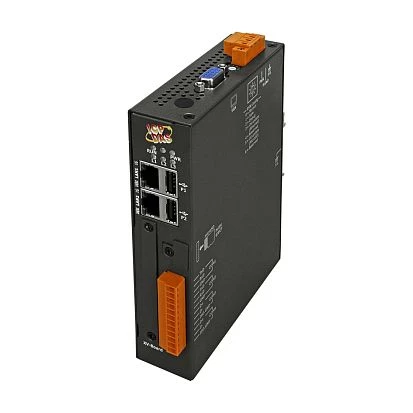

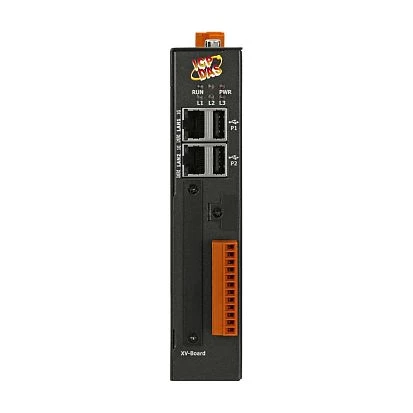

PC-compatible Cortex-A8 1.0 GHz Industrial Controller, VGA, USB, Ethernet, RS-232/485, Windows CE 7.0
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
SRAM
16 kB
Installed drive
Flash Memory Capacity
256 MB
Drive interfaces
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Operating System Installed
Windows CE 7.0
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
2
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
35 mm
Depth
167 mm
Height
119 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
