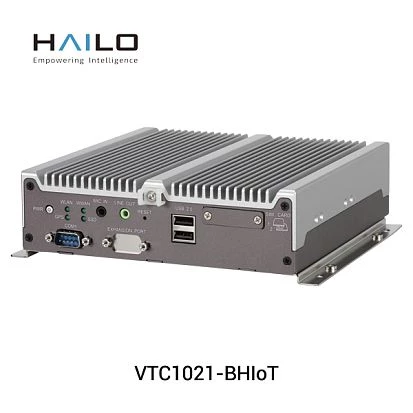

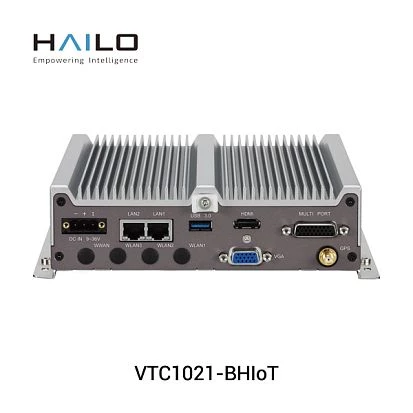

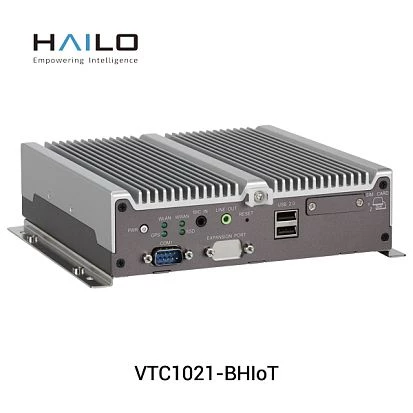

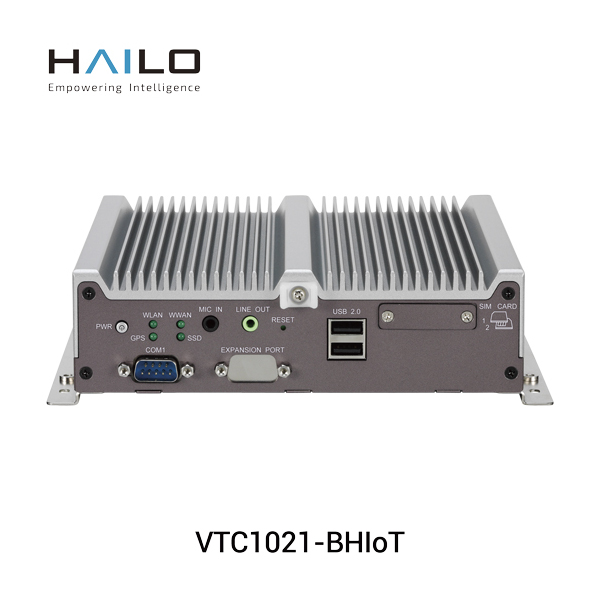

Fanless In-Vehicle Computer, Intel Atom x5-E3940 1.6GHz, 4GB DDR3L up to 8GB, 1x2.5'' SSD/mSATA, VGA+HDMI, 2xGbE LAN, 3xCOM, 3x mini-PCIe, U-blox M8N GPSmodule, 1xCAN2.0B, 3xDI&DO, 3xUSB, 9..36 VDC
VTC-1021-HBIoT
NEXCOM
SKU: 57413300
Price on request
Available on order
Available on order
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom E3940
Socket
FCBGA1296
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Intel HD Graphics 500
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-422/485
1
USB Total
3
USB 2.0
2
USB v3.x
1
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
Yes, 2
Additional Functions
GPS
GPS
Connectors
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45, 3xUSB, Mic In, Line Out, SIM Card Slot, DB26
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
180 mm
Height
50 mm
Depth
180 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
1.7 kg
Gross Weight
1.7 kg
