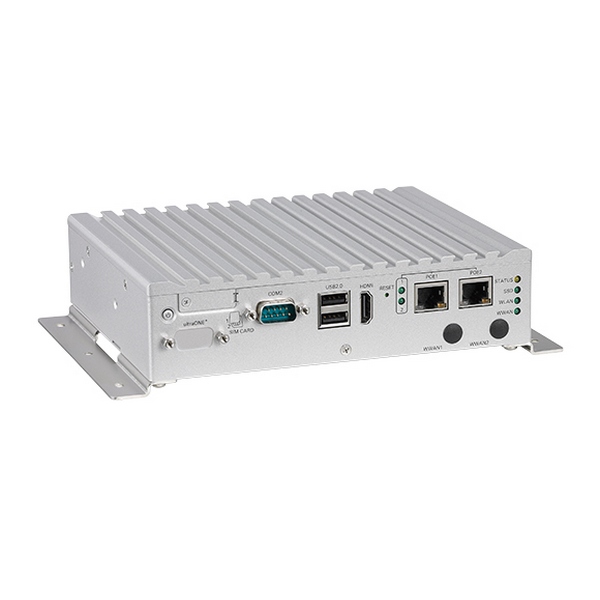

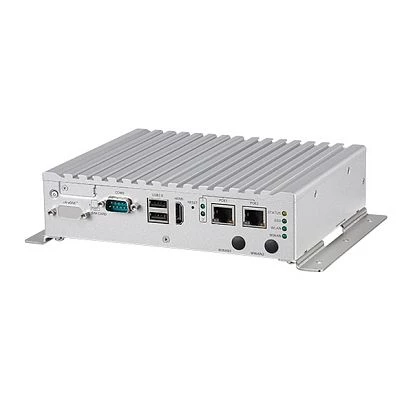

VTC-1011-C2K

Name:

NEXCOM

Construction Chassis:

Aluminium Chassis

Mounting Configuration:

Wall

Processor Installed:

Intel Atom E3825

Frequency:

1.33 GHz

Memory Type:

DDR3L 1333, DDR3L 1066, -1

Socket Type:

1xSODIMM 204pin

Default on Board Memory:

2 GB

Maximum Memory:

8 GB

Total Ethernet:

2

PoE+ 10/100/1000 Mbit/s:

2

COM Total:

3

RS-232:

2

RS-232/422/485:

1

USB Total:

3

USB 2.0:

2

USB 3.0:

1

Channels of DIO:

8

Channels of DI:

4

Channels of DO:

4

CAN Version:

CAN 2.0B

SATA 2 Channels:

1

mSATA Support:

Yes

Support SD:

Yes

Number Of Cage External:

1

2.5" Cage Intenal:

1

Total:

2

Mini-PCIe/Mini Card:

2

Quantity of SIM Card:

2

GPS:

NEO-M8N GNSS

Type:

Fanless

Connectors:

3xDB9, DB15 VGA, 2xRJ45, 2xUSB, Mic In, Line Out, Display Port, DC input (terminal block), 1xLHF 60-pin

Input Voltage DC:

9 ... 36 V (12V DC output)

Operating System Compatibility:

Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux OS

Width:

185 mm

Height:

45 mm

Depth:

150.9 mm

Temperature:

-40 ... 70 °C (with SSD, ambient with air)

Humidity:

10 ... 90 % (non-condensing)

Vibration:

SSD: 1g @ 5~500 Hz

Certifications:

CE, FCC Class A

MIL-STD-810:

MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock

Automotive:

e13 Mark
