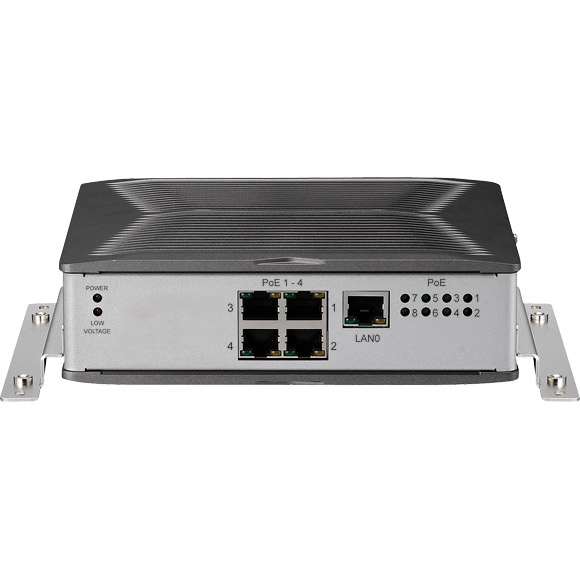

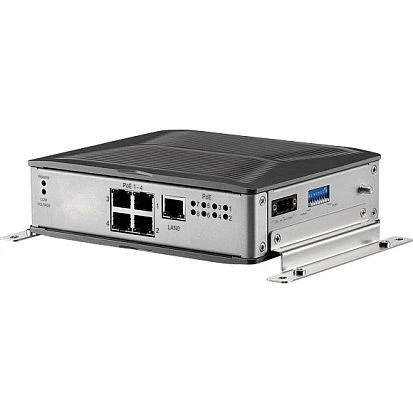

VES30-4S
NEXCOM
SKU: 55850400
Wallmount Version, Gigabit Ethernet Switch with 4x 10/100/1000 PoE RJ-45 ports (802.3af), 1x 10/100/1000 RJ-45 port, 9-36V DC Input Power, Ignition Detection, E13 Mark, -30..70C Operating Temperature
End-of-life product
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Type 10/100/1000 Mbit/s
RJ-45
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
9..36 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
167 mm
Depth
139.6 mm
Height
58.8 mm
Operating Conditions
Operating Temperature
-30..70 °C
Vibration
1g
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
1 kg
Gross Weight
1.3 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Type 10/100/1000 Mbit/s
RJ-45
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
9..36 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
167 mm
Depth
139.6 mm
Height
58.8 mm
Operating Conditions
Operating Temperature
-30..70 °C
Vibration
1g
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
1 kg
Gross Weight
1.3 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Type 10/100/1000 Mbit/s
RJ-45
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
9..36 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
167 mm
Depth
139.6 mm
Height
58.8 mm
Operating Conditions
Operating Temperature
-30..70 °C
Vibration
1g
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
1 kg
Gross Weight
1.3 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Type 10/100/1000 Mbit/s
RJ-45
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
9..36 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
167 mm
Depth
139.6 mm
Height
58.8 mm
Operating Conditions
Operating Temperature
-30..70 °C
Vibration
1g
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
1 kg
Gross Weight
1.3 kg
