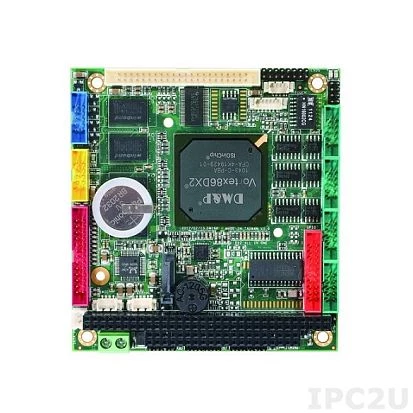

PC/104 Vortex86DX2 800MHz CPU Module with 512MB RAM, VGA, LCD, LVDS, LAN, 4xCOM, 2xUSB, Audio, GPIO, PWMx12, operating temp -20..70 C
VDX2-6554-V2-512
ICOP
SKU: 09829800
Price on request
Available on order
Available on order
System Architecture
Form Factor
PC/104
Construction
Type
Fanless
CPU
Processor Installed
Vortex86DX2
Max CPU frequency
0.8 GHz
Memory
Form-factor
DDR2
Default on Board Memory
0.5 GB
Assembly
Fixed on Board
Graphic
Interfaces
LVDS, VGA
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
4
RS-232/485
4
USB Total
2
USB 2.0
2
LPT
LPT
Digital Input-Output
Channels of DIO
16
Audio
Audio Controller
Realtek ALS888S
Drive interfaces
SATA 2
1
Extension Slots
PC/104
1
Connectors
Internal Ports
SATA 2, 26-pin LPT, 4x10-pin RS-232, 10-pin USB 2.0, 16-pin LVDS, 20-pin GPIO, 5-pin KB, 5-pin MS, 10-pin VGA, 8-pin Ethernet
Dimensions and weight
Width
90 mm
Length
96 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.1 kg
Gross Weight
0.5 kg
