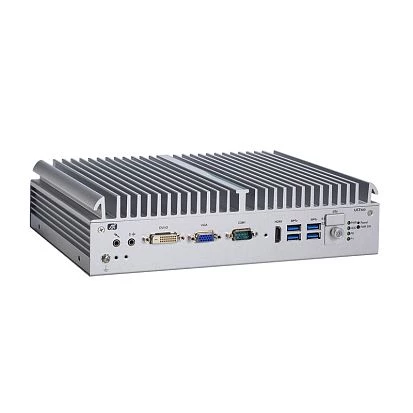

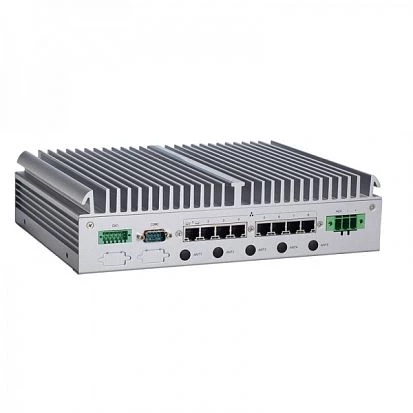

UST500-517-FL-8RJ2SATA-TDC

Name:

AXIOMTEK

Construction Chassis:

Aluminium Chassis

Mounting Configuration:

Built-in, Wall

Protection Level of Chassis:

IP40

Processor Supported:

Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium

Chipset:

Intel Q170

Memory Type:

DDR4 RAM

Socket Type:

2xSODIMM 260-pin

Maximum Memory:

64 GB

Total Ethernet:

6

PoE+ 10/100/1000 Mbit/s:

6

COM Total:

2

RS-232/422/485:

2

USB Total:

4

USB 3.0:

4

Channels of DI:

6

Channels of DO:

2

SATA 3 Channels:

2 (RJ-45)

RAID SATA 3:

0, 1, 5, 10

2.5" Drive Bays:

2xSATA 3

Quantity of HDD:

2

mSATA Support:

Yes (PCIe Mini Card)

2.5" Cage Intenal:

2

Mini-PCIe/Mini Card:

4 (2xFull-size, 2xHalf-size PCI Express Mini Card slot )

Quantity of SIM Card:

Yes, 2, Full size Sim-card

Programmable:

Yes

Reaction Time:

255 levels, 1 ~ 255 sec

Type:

Fanless

Connectors:

2xDB9, DVI-D, HDMI, 4xUSB, DC Input, 2xLine Out, 2xMic In, 8xRJ45 Ethernet

Included Cables:

1xAudio cable fixed, 1xHDMI cable fixed, 3xCable fixed screws, 3xCable tie, 1xTerminal block

Input Voltage DC:

9 ... 36 V (24 V ACC ignition)

Operating System Compatibility:

Windows 7, Windows 8, Linux OS, Windows 10

Width:

280 mm

Height:

70 mm

Depth:

210.5 mm

Temperature:

-40 ... 70 °C

Humidity:

10 ... 95 %

Vibration:

3 Grms w/ SSD (5 ~ 500 Hz, X/Y/Z direction; random)

Certifications:

CE, FCC

Rolling Stock:

EN 50155

Vehicle:

E-Mark
