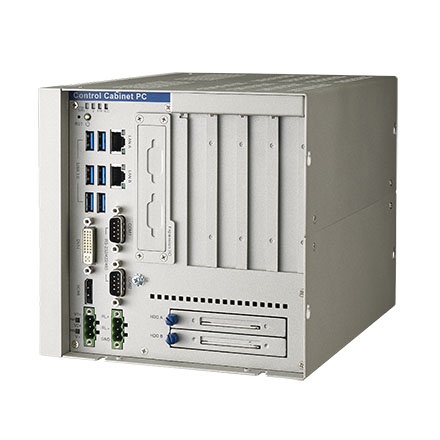

Embedded Computer w/CPU, Intel Core i7-6822EQ 2.0GHz CPU, QM170 Chipset, 8GB DDR4 RAM, DVI-I, HDMI, 2xGbE LAN, 2xRS232/422/485, 1xRS422/485, 6xUSB 3.0, 1xCFast, 2xPCIe x8, 2xPCI, 2xmPCIe, mSATA, 2x2.5" Drive Bay, 12-36VDC-in
UNO-3285G-674BE
Advantech
SKU: 10257900
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i7-6822EQ
Socket
FCBGA1440
Max CPU frequency
2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI, HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB v3.x
6
Drive interfaces
SATA 3
2
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
6
PCI Express x8
2
Mini-PCIe/Mini Card
2
PCI
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DVI-I, HDMI, 2xRJ45, 6xUSB
System Power Input
Input Voltage DC
12..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows IoT Enterprise 10, Astra Linux
Dimensions and weight
Width
182 mm
Height
238 mm
Depth
177 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Vibration
Operating, IEC 60068-2-64, 4Grms, random
Shock
Operating, IEC 60068-2-27, 50G, half sine, 11ms (SSD)
Standards and Certifications
Certifications
CE, FCC
Safety
CCC, UL, BSMI
Dimensions
Net Weight
4.4 kg
Gross Weight
4.7 kg
