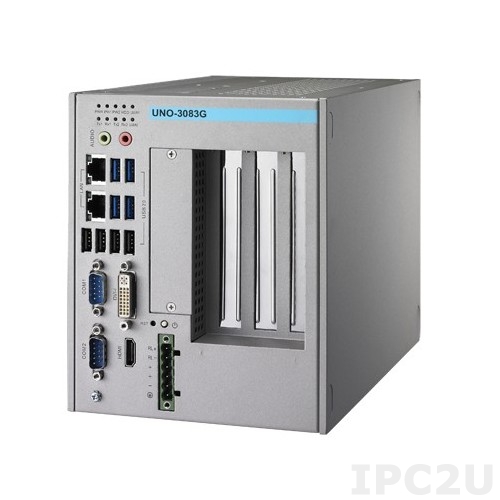

UNO-3083G-D44E
Advantech
SKU: 06735300
Embedded computer w/CPU Intel i7-2655LE 2.2GHz, 4Gb DDR3 RAM, DVI-I, HDMI, 2xGB LAN, 2xRS-232/422/485, 2xRS-232 (optional), 1xPCIe x16, 2xPCI, 2xMiniPCIe
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Panel, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i7-2655LE
Max CPU frequency
2.9 GHz
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
9
USB 2.0
9
Audio
Audio Controller
Intel HD Audio
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
5
PCI Express x16
1
Mini-PCIe/Mini Card
2
PCI
2
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI-I, HDMI, 2xRJ45, 8xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
45 W
Software
Operating System Compatibility
Windows XP, Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 2009, Linux OS
Dimensions and weight
Width
148 mm
Height
177 mm
Depth
238 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.5 kg
Gross Weight
5.5 kg
