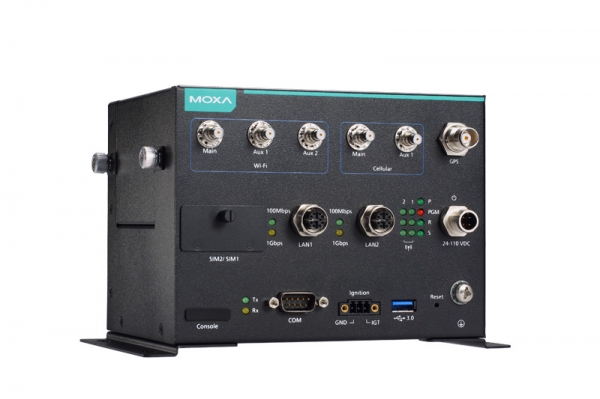

MOXA UC-8540-T-LX

Name:

MOXA

Construction Chassis:

Metal Chassis

Mounting Configuration:

Desktop, Wall

Protection Level of Chassis:

IP40

Processor Installed:

ARM Cortex A7

Frequency:

1 GHz

Memory Type:

DDR3L

Default on Board Memory:

1 GB

Total Ethernet:

2

10/100/1000 Mbit/s:

2 (M12 X-coded)

Wi-Fi Standard:

802.11ac/a/b/g/n

COM Total:

1

RS-232/422/485:

1

USB Total:

1

USB 3.0:

1

mSATA Support:

Yes

Total:

2

Mini-PCIe/Mini Card:

2 (1xWi-Fi, 1xCellular)

Quantity of SIM Card:

2, Micro-SIM

GPS:

Yes

Programmable:

Yes

Type:

Fanless

Input Voltage DC:

24 ... 110 V

Power Consumption:

40 W

Operating System Installed:

Linux Debian 8 (Linux kernel v4.1)

Width:

190 mm

Height:

125 mm

Depth:

120 mm

Temperature:

-40 ... 70 °C

Humidity:

5 ... 95 % (non-condensing)

Vibration And Shock:

IEC 60068-2-27, IEC 60068-2-64, IEC 61373

Safety:

UL 60950-1, EN 60950-1

EMS:

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032

EMI:

FCC Part 15 Subpart B Class A, CISPR 32

Rolling Stock:

EN 50121-4, EN 50155, EN 45545
