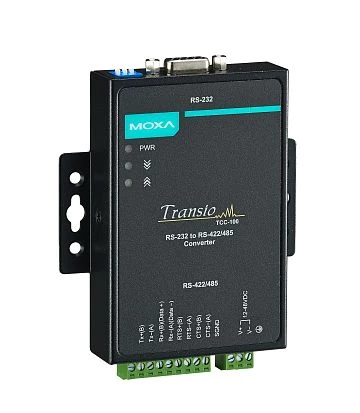

Isolated RS-232 to RS-422/485 Converter
TCC-100I
MOXA
SKU: 02043300
Price on request
Available on order
Available on order
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
Isolation of COM Ports
2 kV (RS-232/422/485)
Switch Properties
Supported functions
Automatic Data Direction Control (ADDC®)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-20..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
67 mm
Depth
22 mm
Height
100.4 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class B, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 55032
Safety
UL 60950-1
Dimensions
Net Weight
0.07 kg
Gross Weight
0.31 kg
