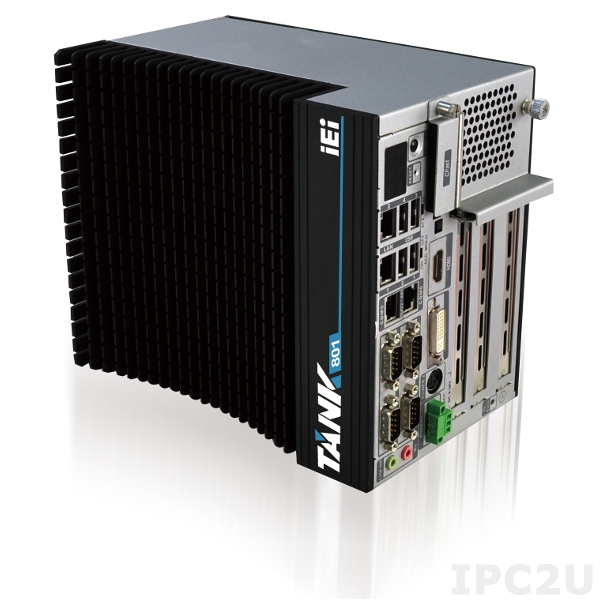

TANK-801-BTi-J1/2G/3A

Name:

IEI

Construction Chassis:

Aluminium Chassis

Mounting Configuration:

Desktop, Wall

Processor Installed:

Intel Celeron J1900

Frequency:

2 GHz

Chipset:

Intel Atom SoC

Memory Type:

DDR3L

Socket Type:

1xSODIMM 204pin

Default on Board Memory:

2 GB

Assembly:

Removable

Maximum Memory:

8 GB

Graphic Controller:

Integrated in Chipset (Intel 7 Generation and DX11 and full HD support)

Controller Type:

Intel I210-AT, Intel I211

Total Ethernet:

2 (Intel)

10/100/1000 Mbit/s:

2

Wi-Fi Standard:

802.11b/g/n (optional)

COM Total:

4

RS-232:

2

RS-232/422/485:

2 (with isolation)

USB Total:

4

USB 2.0:

2

USB 3.0:

2

Channels of DIO:

16

Channels of DI:

8

Channels of DO:

8

Audio Controller:

Intel HD Audio

SATA 2 Channels:

1

CFast Socket:

Yes

Number Of Cage External:

1

2.5" Cage Intenal:

1

Total:

4

PCI Express x1:

1

PCI:

2

Mini-PCIe/Mini Card:

1

Type:

Fanless

Connectors:

4xDB9, DVI-I, 2xRJ45, Line In, Line Out, DC Input, Display Port, DC input (terminal block), 2xDIO (terminal block)

Input Voltage DC:

9 ... 36 V

Operating System Compatibility:

Windows Embedded Standard 7, Windows Embedded Standard 8

Width:

136 mm

Height:

188 mm

Depth:

219 mm

Temperature:

-20 ... 70 °C

Humidity:

5 ... 95 % (non-condensing)

Certifications:

CE, FCC

MIL-STD-810:

MIL-STD-810F Test Method 514.5C-2 Vibration
