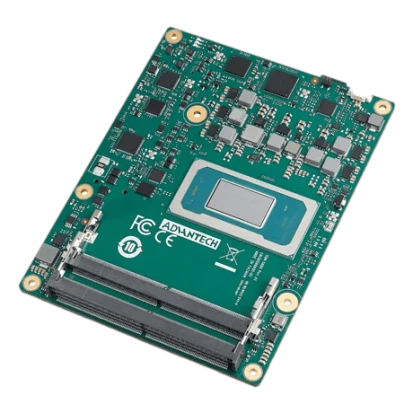

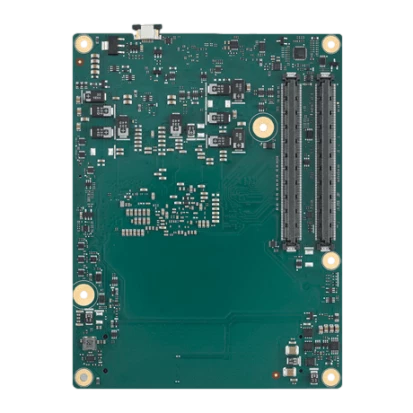

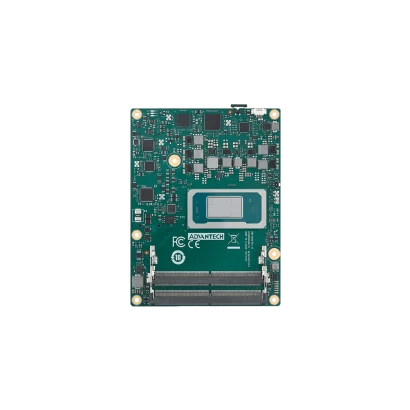

SOM-5886C7HG-U5A1

SOM-5886C7HG-U5A1

Advantech
SKU: 80247700
COM Express Type 6 Module, Intel 3rd Gen Core Ultra x7 368HR CPU, Up to 128GB DDR5 RAM, 3xDDI, LVDS/eDP, 1x2.5GbE LAN, 2xUSB 4, 4xUSB 3.2, 8xUSB 2.0, 2xCOM (1xCAN), 8-bit GPIO, LPC, SPI Bus, SMBus, I2C, 2xSATA3, 4xPCIe PEG Lanes, 8xPCIe Lanes
Price on request
Available
Available
System Architecture
Form Factor
COM Express CPU Module
CPU
СPU Generation/Family
Panther Lake
Processor Installed
Intel Core Ultra X7 368HR
Socket
FCBGA2540
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, 3xDDI, eDP
Ethernet
Controller Type
Intel i226
Total Ethernet
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
14
USB 2.0
8
USB v3.x
4
USB v4
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
Additional Functions
Watchdog timer type
Software
Software
Operating System Compatibility
Linux OS, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
95 mm
Length
125 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.25 kg
Gross Weight
0.4 kg
