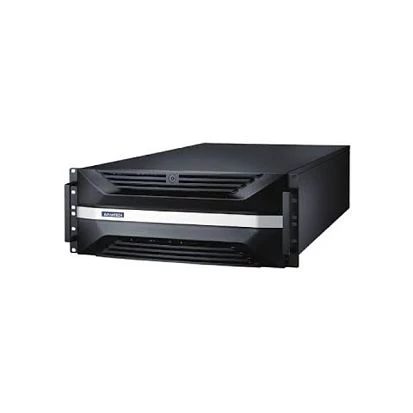

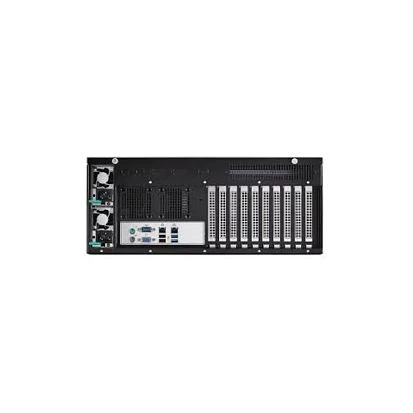

4U Rackmount Processor-based Platform, 2xsockets LGA3647-P0 with support Xeon Scalable, up to 1536 Gb DDR4 2666 MHz ECC-REG DIMM, VGA, 2x 2.5" HDD, 8x 3.5" Hot-Swap HDD, 2x GbE LAN, 6xUSB, 4xPCIe x16, PCIe x8, 4xPCIe x4, power supply 2000 W
SKY-6400-R20A1
Advantech
SKU: 07975200
Price on request
Available on order
Available on order
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
19" Rackmount
Height
4 U
Type
Fans
CPU
Socket
LGA 3647-P0
CPU Support Type
Xeon
Number of CPU
2
Chipset
Chipset
Intel C622
Memory
Form-factor
DDR4
ECC
Yes
Maximum Memory
384 GB
Assembly
Removable
Graphic
Graphic Controller
Aspeed AST 2500
Graphic Memory Size
0.06 GB
Interfaces
VGA
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
6
USB v3.x
6
Storage Cage
2.5" Cage Intenal
2
3.5" Cage External
8
Extension Slots
PCI Express x16
4
PCI Express x8
1
LED / Controls
LED
1xHDD LED, Power LED, LAN LED
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, 2xRJ45, 6xUSB, Console Port RS-232 (DB9M)
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
Redundant
Dimensions and weight
Width
435 mm
Height
177 mm
Depth
673 mm
Operating Conditions
Operating Temperature
0..35 °C
Vibration
0.5 Grms
Shock
10 G
Dimensions
Net Weight
16 kg
Gross Weight
18 kg
