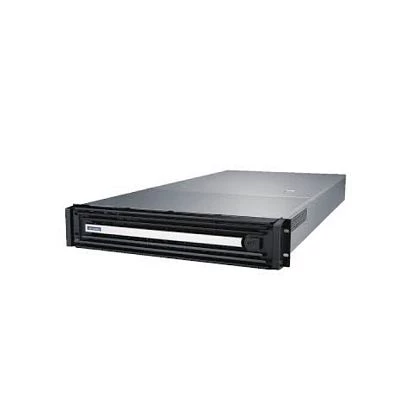

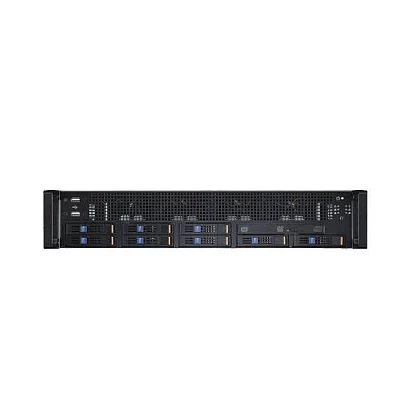

2U Rackmount Processor-based Platform, 2xsockets LGA3647-P0 with support Xeon Scalable, up to 1536 Gb DDR4 2666 MHz ECC-REG DIMM, VGA, 8x 2.5" Hot-Swap HDD, 2x10GbE LAN, 2x10/100/1000 Mbps GbE, 4xUSB 3.0, 2xUSB 3.0, 3xPCIe x16, power supply 1968 W
SKY-6200-R20A1
Advantech
SKU: 07975100
Price on request
Available on order
Available on order
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
19" Rackmount
Height
2 U
Type
Fans
CPU
Socket
LGA 3647-P0
CPU Support Type
Xeon
Number of CPU
2
Chipset
Chipset
Intel C622
Memory
Form-factor
DDR4
Socket Type
24xDIMM
ECC
Yes
Maximum Memory
1536 GB
Assembly
Removable
Graphic
Graphic Controller
Aspeed AST 2500
Graphic Memory Size
0.06 GB
Interfaces
VGA
Ethernet
Controller Type
Intel i210-AT, Intel X557-AT2
Total Ethernet
4
10/100/1000 Mbit/s
2
10 Gbit/s
2
Interfaces
COM Total
1
RS-232
1
USB Total
6
USB 2.0
2
USB v3.x
4
Storage Cage
2.5" Cage External
8
Extension Slots
PCI Express x16
2
PCI Express x8
1
M.2
1
LED / Controls
LED
LED Bar, Power LED, LAN LED
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, 4xRJ45, Console Port RS-232 (DB9M)
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
Redundant
Dimensions and weight
Width
438 mm
Height
88 mm
Depth
760 mm
Operating Conditions
Operating Temperature
0..35 °C
Vibration
0.5 Grms
Shock
10 G
Dimensions
Net Weight
24 kg
Gross Weight
25.26 kg
