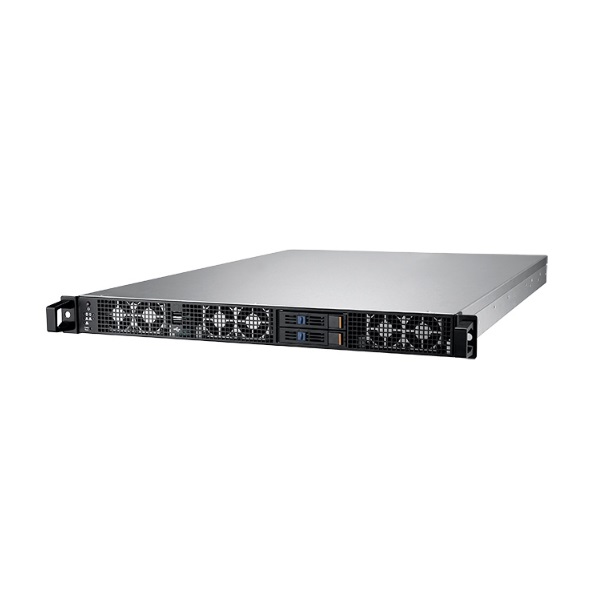

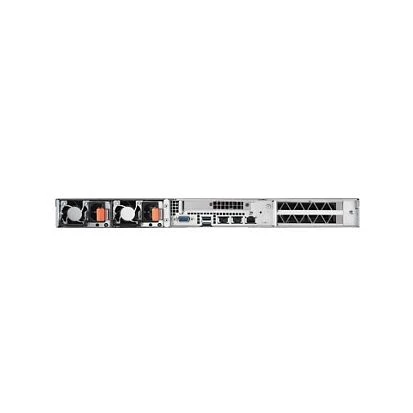

1U Rackmount Processor-based Platform, 2xsockets LGA3647-P0 with support Xeon Scalable,up to 512 Gb DDR4 2666 ECC-REG DIMM, VGA, 2x 2.5" Hot-Swap HDD, 2x10GbE LAN, 1x10/100/1000 Mbps GbE,2xUSB 3.0,2xUSB 3.0, 5xPCIex16,redundant power supply 1200 W
SKY-6100-R12A1E
Advantech
SKU: 07974700
Price on request
Available on order
Available on order
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
19" Rackmount
Height
1 U
Type
Fans
CPU
Socket
LGA 3647-P0
CPU Support Type
Xeon
Number of CPU
2
Chipset
Chipset
Intel C622
Memory
Form-factor
DDR4
Socket Type
8xDIMM
ECC
Yes
Maximum Memory
512 GB
Assembly
Removable
Graphic
Graphic Controller
Aspeed AST 2500
Graphic Memory Size
0.06 GB
Interfaces
VGA
Ethernet
Controller Type
Intel i210-AT, Intel X557-AT2
Total Ethernet
3
10/100/1000 Mbit/s
1
10 Gbit/s
2
Interfaces
USB Total
4
USB 2.0
2
USB v3.x
2
Storage Cage
2.5" Cage External
2
Extension Slots
PCI Express x16
5
M.2
1
LED / Controls
LED
LED Bar, Power LED, LAN LED
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, 3xRJ45, 4xUSB
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
Redundant
Dimensions and weight
Width
438 mm
Height
44 mm
Depth
650 mm
Operating Conditions
Operating Temperature
0..35 °C
Vibration
0.25 Grms
Shock
10 G
Dimensions
Net Weight
13 kg
Gross Weight
18 kg
