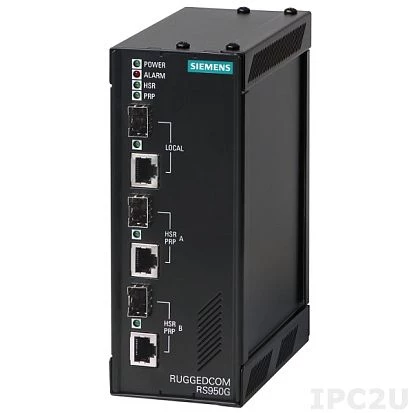

RUGGEDCOM RS950G Industrial Managed 2 Layer Redundancy Box, IP40, 3x100/1000Base-X ports, 128-bit Encryption, PRP IEC62439-3, IEC61850-3, 24VDC or 48 VDC Input Power, Wide Temp. -40..85C
RUGGEDCOM-RS950G
Siemens AG
SKU: 56129400
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
3
Type 10/100/1000 Mbit/s
3xRJ-45
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, SNTP, RMON, TFTP, IGMP, DHCP Client
Reservation protocols
HSR, PRP
Security Protocols
SSH, SSL, TACACS+, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
LED / Controls
Setup of Operation Mode
Console Port, Web-interface
System Power Input
Input Voltage DC
10..36 V
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
66 mm
Depth
127 mm
Height
188 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
Power Automation
IEC 61850-3
Safety
EN 60950, UL, CSA
Dimensions
Net Weight
1.22 kg
Gross Weight
1.5 kg
