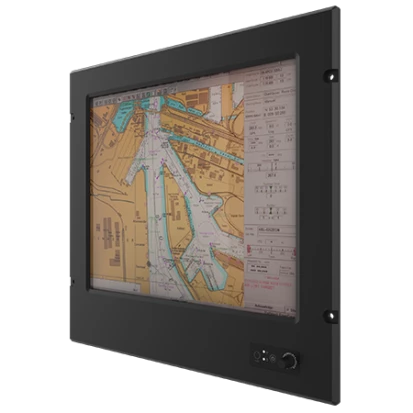

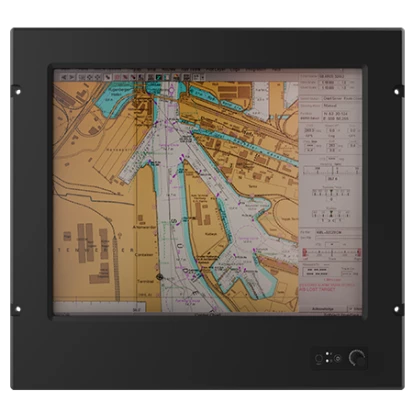

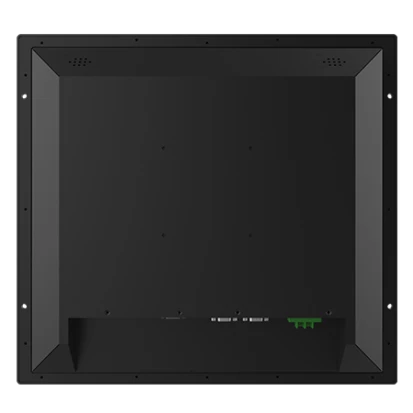

19" Marine Panel PC, IP66 Front, 1280x1024, 350cd/m2, Resistive Touch, Intel 11th Gen Core i7-1165G7 2.8GHz CPU, 4GB DDR4 RAM, 128GB NVME SSD, HDMI Opt., 2x2.5GbE LAN, 2xUSB 3.0, 5xCOM, 9-36VDC-in Terminal Block w/ PSU, -15..55C
R19IT3S-MRA2
Winmate
SKU: 10754000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i7-1165G7
Socket
FCBGA 1449
Max CPU frequency
4.7 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
5
RS-232
5
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
5xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
65 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
84 W
Software
Operating System Compatibility
Windows IoT Enterprise 10, Windows 11
Operating System Installed
Windows 11
Dimensions and weight
Width
483 mm
Height
444 mm
Depth
77.5 mm
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
9.6 kg
Gross Weight
10.6 kg
