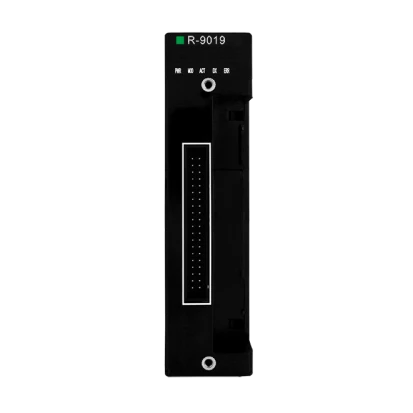

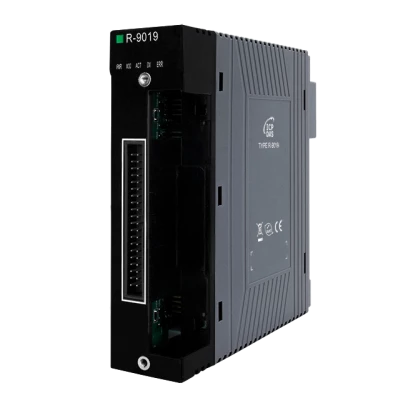

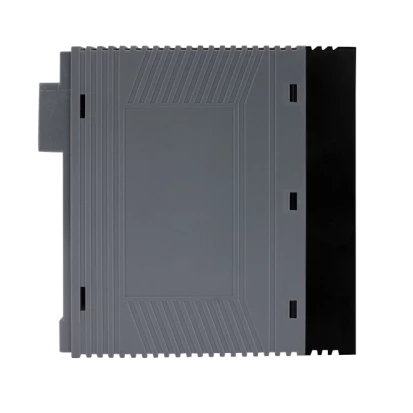

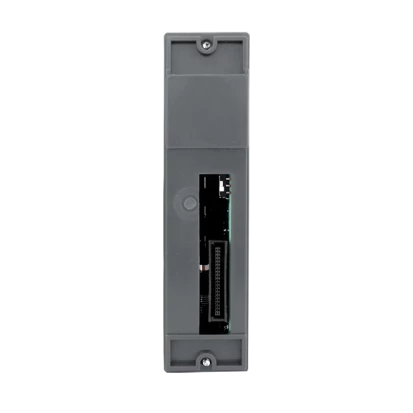

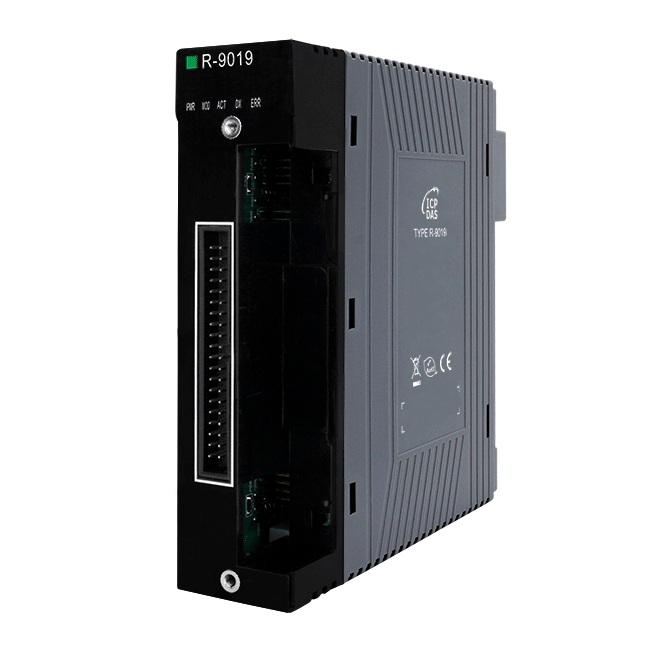

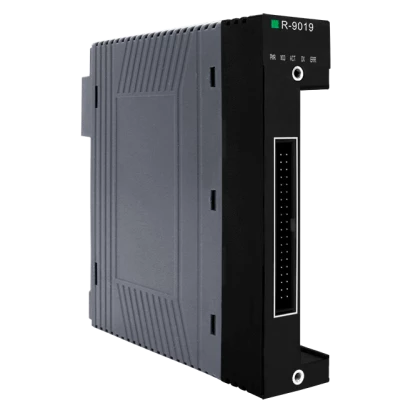

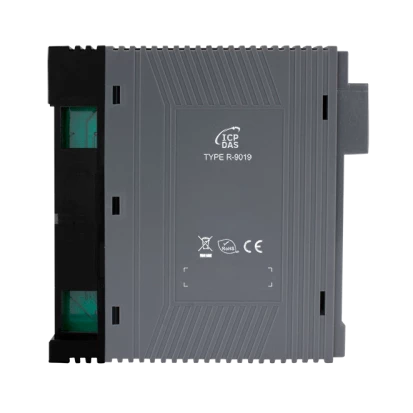

Thermocouple Input Redundant Module, 16 Channels Analog Input, 2.2 W, Operating Temperature -25..70C
R-9019
ICP DAS
SKU: 80042300
Price on request
Available on order
Available on order
Analog Input
Total channels of analog input
16
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С
Operating Conditions
Operating Temperature
-25..70 °C
Humidity
5-95%
Dimensions and weight
Width
33 mm
Depth
129 mm
Height
130 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
2 kg
Gross Weight
3 kg
Documentation
